Reverse Clutch Piston Disassembly Note

WARNING: This page is about a different car, the 2008 Mazda RX-8, 2007 Mazda RX-8, 2006 Mazda RX-8, 2005 Mazda RX-8, and 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eye wear whenever using compressed air.

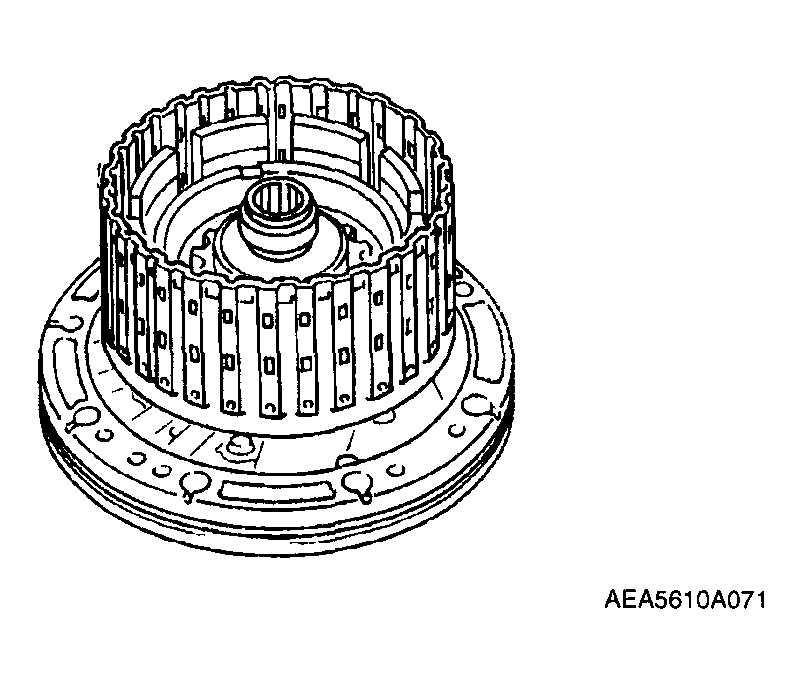

Install the reverse and high clutch drum to the oil pump.

Fig 1: Installing Reverse And High Clutch Drum To Oil Pump
Courtesy of MAZDA MOTORS CORP.

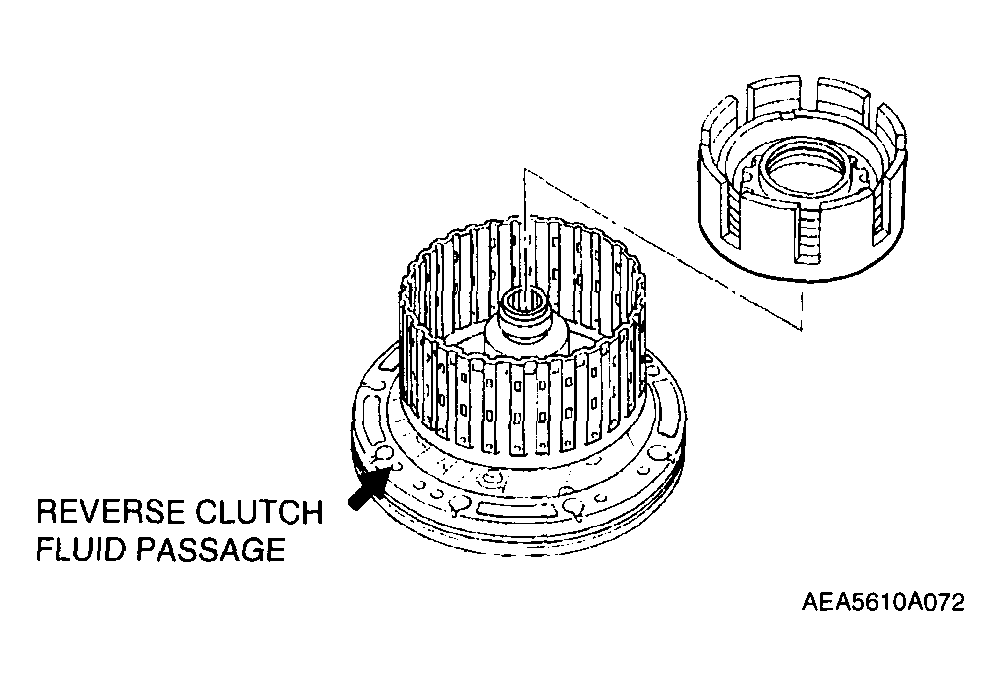

Apply compressed air to the port indicated in the figure and remove the reverse clutch piston.
Air pressure

390 kPa {4.0 kgf/cm ² , 57 psi} max.

Fig 2: Identifying Reverse Clutch Fluid Passage
Courtesy of MAZDA MOTORS CORP.
