Low And Reverse Brake Disassembly: Notes

WARNING: This page is about a different car, the 2008 Mazda RX-8, 2007 Mazda RX-8, 2006 Mazda RX-8, 2005 Mazda RX-8, and 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.

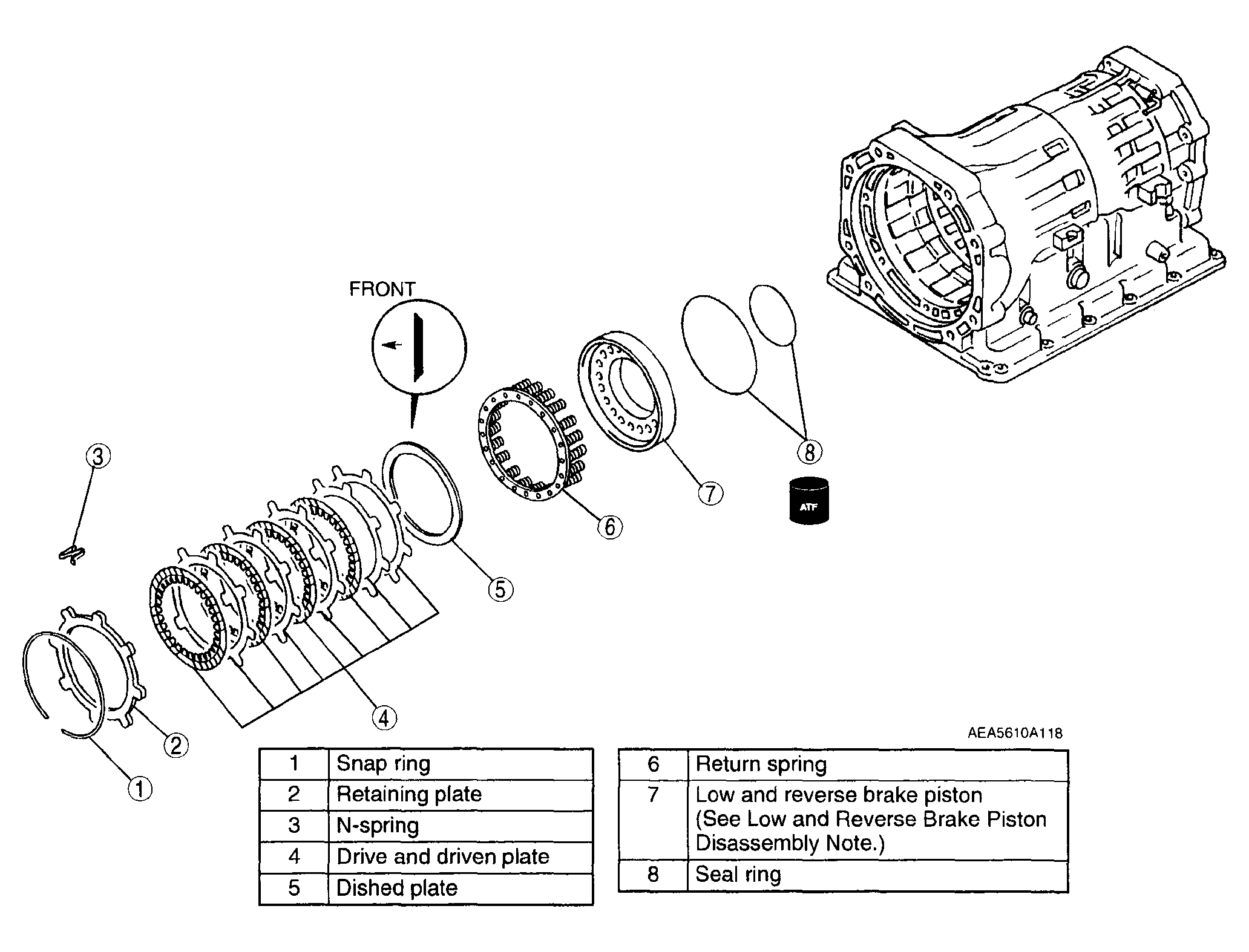

    Fig 1: Exploded View Of Low And Reverse Brake (Transmission Case)
    G04331463Courtesy of MAZDA MOTORS CORP.
