Control Valve Body Assembly

WARNING: This page is about a different car, the 2008 Mazda RX-8, 2007 Mazda RX-8, 2006 Mazda RX-8, 2005 Mazda RX-8, and 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Denting or scratching the control valve body components will reduce the performance of the transmission to shift properly. When handling these components or the valve body that contains them, be careful not to drop or hit them.

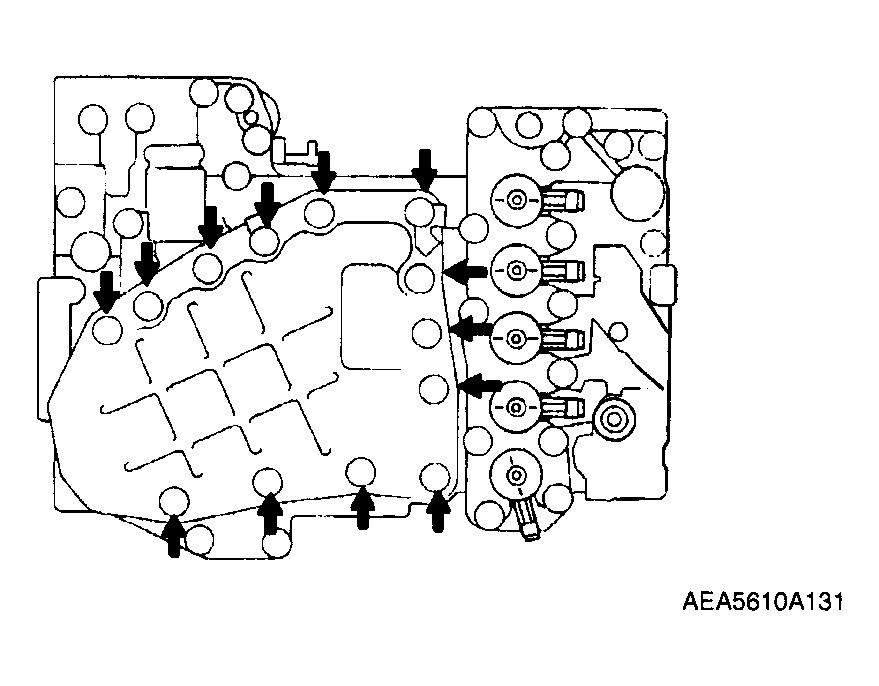

Apply ATF to new O-rings, and install them to the solenoids.

Install the solenoid as shown in the figure.

Fig 1: Installing Control Valve

Courtesy of MAZDA MOTORS CORP.

COLOR CONNECTOR REFERENCE

Solenoid	Color of connector
A	Brown
B	Gray

Install the harness bracket and the fix plate.
Tightening torque

6.9-8.8 N.m {71-89 kgf.cm, 62-77 in.lbf}

Fig 2: Installing Harness Bracket And Fix Plate
Courtesy of MAZDA MOTORS CORP.

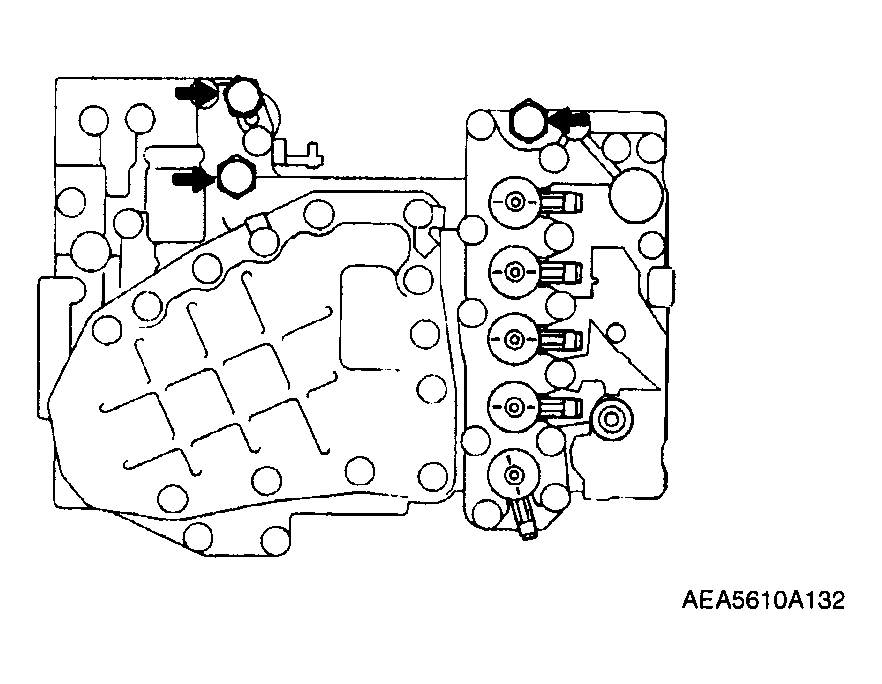

Install the oil strainer.
Tightening torque

6.9-8.8 N.m {71-89 kgf.cm, 62-77 in.lbf}

Fig 3: Tightening Oil Strainer Bolts
Courtesy of MAZDA MOTORS CORP.

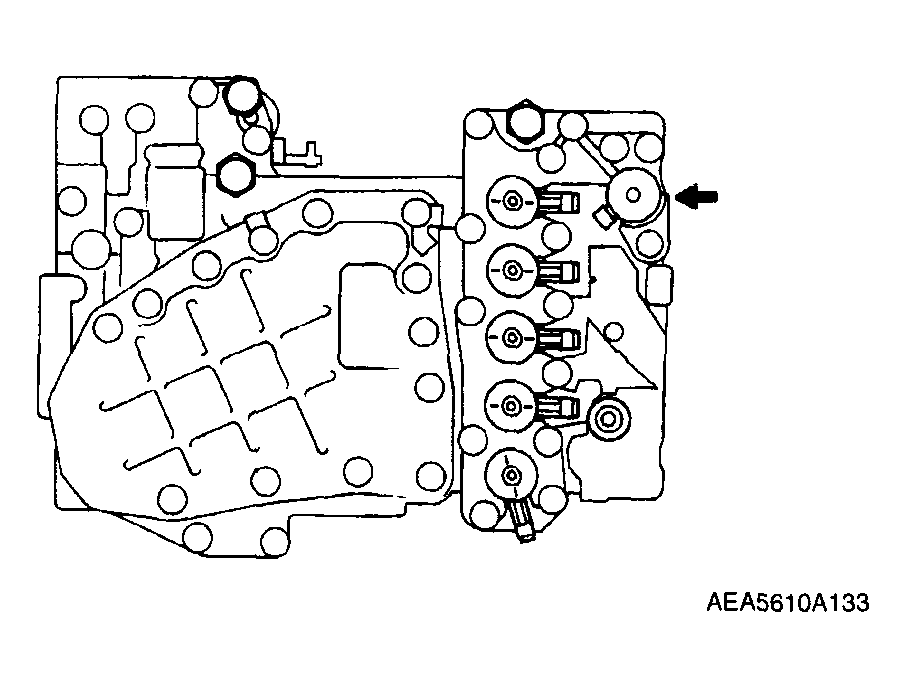

Install the oil pressure switch.
Tightening torque

4.0-4.9 N.m {40-50 kgf.cm, 35-43 in.lbf}

Fig 4: Tightening Oil Pressure Switch
Courtesy of MAZDA MOTORS CORP.

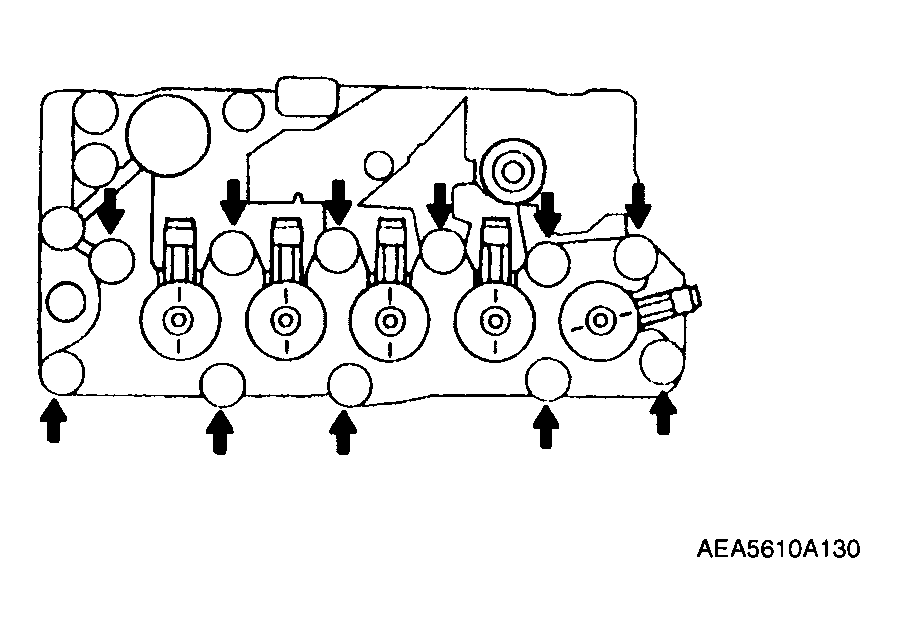

Install the pressure control solenoid.
Tightening torque

6.9-8.8 N.m {71-89 kgf.cm, 62-77 in.lbf}

Fig 5: Installing Pressure Control Solenoid
Courtesy of MAZDA MOTORS CORP.

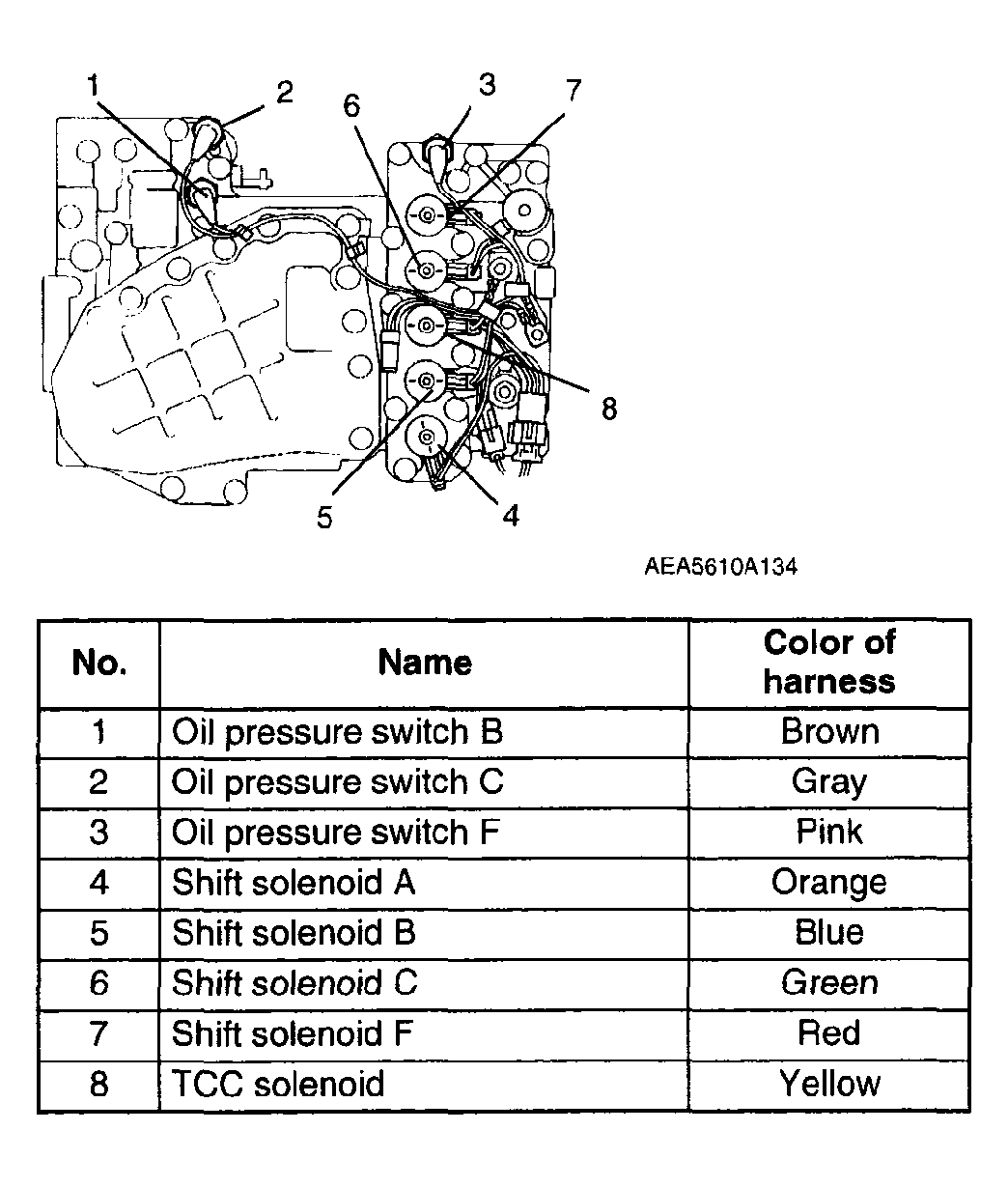

Install the harness component as shown in the figure.

Fig 6: Identifying Harness Component
Courtesy of MAZDA MOTORS CORP.
