Snap Ring Disassembly Note

WARNING: This page is about a different car, the 2008 Mazda RX-8, 2007 Mazda RX-8, 2006 Mazda RX-8, 2005 Mazda RX-8, and 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

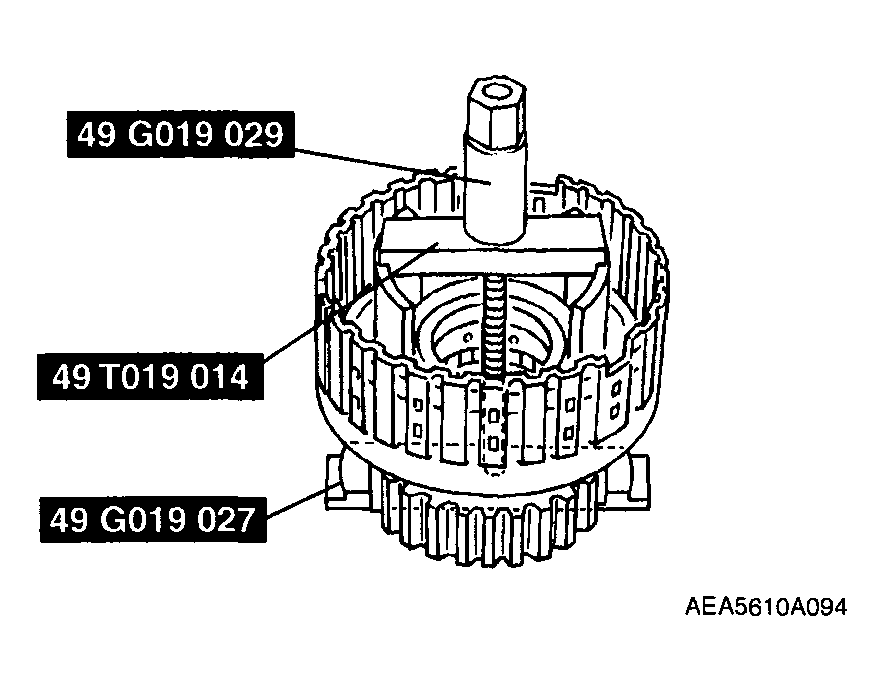

Install the SSTs in the clutch drum as shown.
CAUTION:
- Do not compress the cancel cover excessively. Doing so can damage the return spring.
Fig 1: Installing SST In Clutch Drum
Courtesy of MAZDA MOTORS CORP.

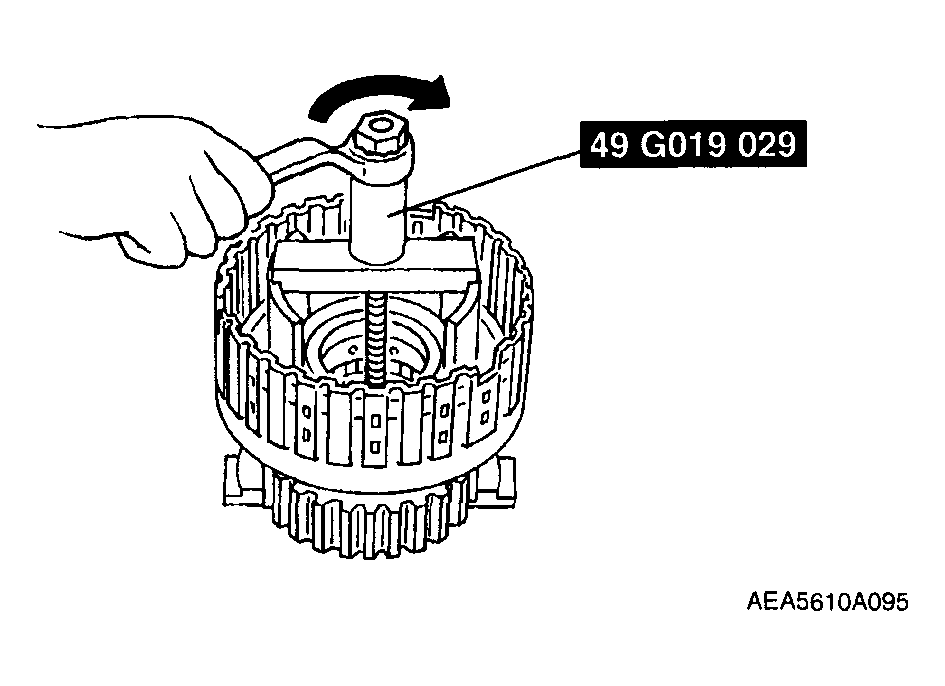

Compress the cancel cover using the SST.

Fig 2: Compressing Cancel Cover Using SST
Courtesy of MAZDA MOTORS CORP.
Remove the snap ring.
Remove the SSTs .
