Carrier Component Assembly

WARNING: This page is about a different car, the 2008 Mazda RX-8, 2007 Mazda RX-8, 2006 Mazda RX-8, 2005 Mazda RX-8, and 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Install the bearing and the snap ring.

Fig 1: Installing Bearing And Snap Ring
Courtesy of MAZDA MOTORS CORP.
Install the low one-way clutch and the side plate.
Install the low one-way clutch inner race.

Fig 2: Installing Low One-Way Clutch Inner Race
Courtesy of MAZDA MOTORS CORP.
Verify that the low one-way clutch inner race rotates smoothly when turned clockwise.
- If the inner race does not rotate smoothly, replace the low one-way clutch.

Fig 3: Rotating Low One-Way Clutch Inner Race Clockwise

Courtesy of MAZDA MOTORS CORP.

Verify that the low one-way clutch inner race locks when turned counter clockwise.
- If the inner race does not lock, replace the low one-way clutch.
Remove the low one-way clutch inner race.
Install new seal rings to the low clutch piston.

Fig 4: Installing Seal Rings To Low Clutch Piston
Courtesy of MAZDA MOTORS CORP.
Install the low clutch piston.

Fig 5: Installing Low Clutch Piston
Courtesy of MAZDA MOTORS CORP.

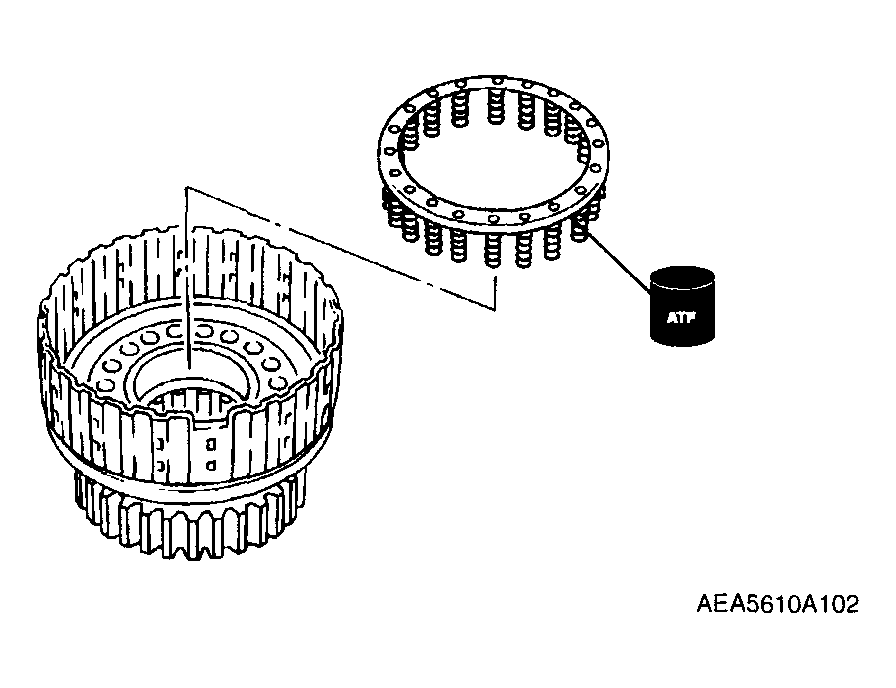

Install the return spring.

Fig 6: Installing Return Spring
Courtesy of MAZDA MOTORS CORP.

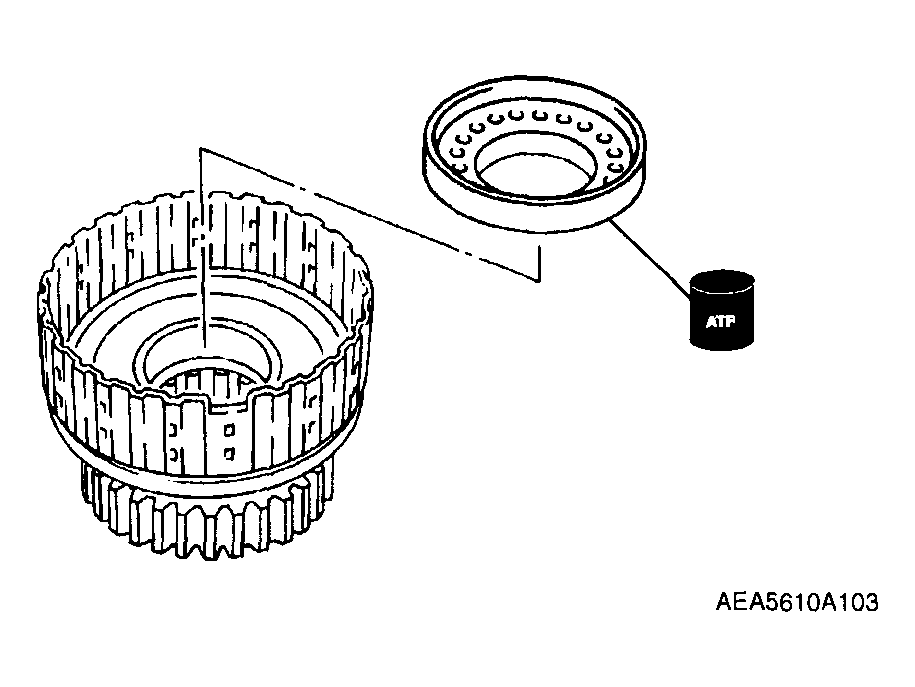

Install the cancel cover.
CAUTION:
- Be sure to center the SSTs on the low clutch drum. Otherwise, the return spring can be damaged.
Fig 7: Installing Cancel Cover
Courtesy of MAZDA MOTORS CORP.
Install the SSTs as shown in the figure.
CAUTION:
- Do not compress the cancel cover excessively. Doing so can damage the return spring.

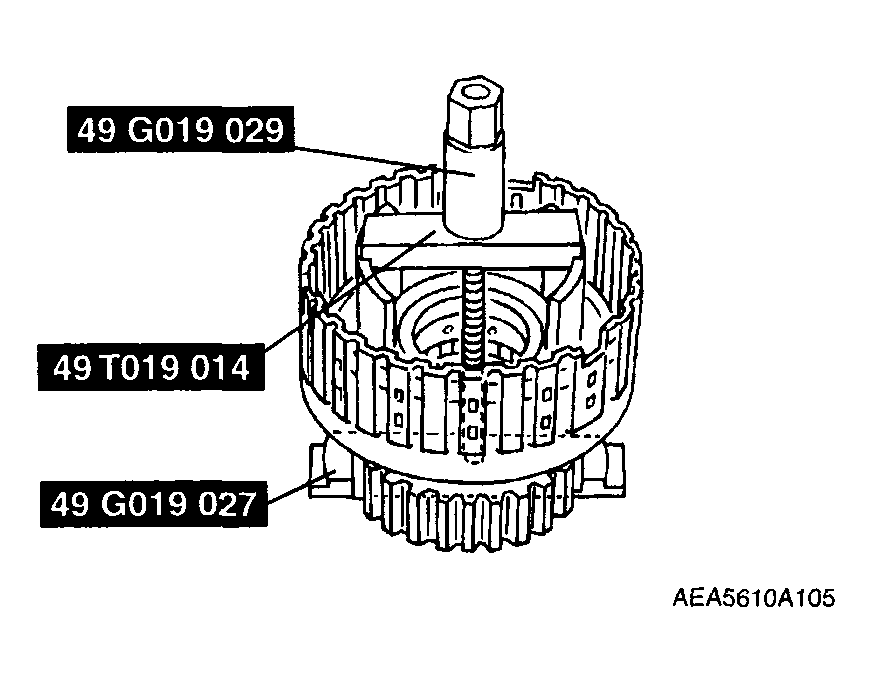

Fig 8: Installing SST To Cancel Cover
Courtesy of MAZDA MOTORS CORP.

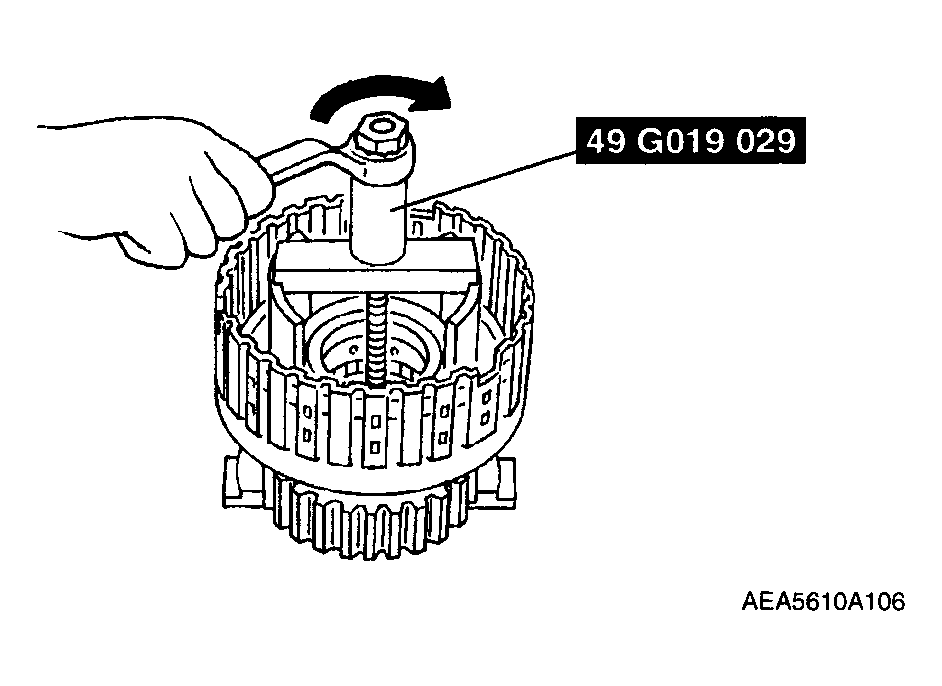

Compress the cancel cover using the SST.

Fig 9: Compressing Cancel Cover Using SST
Courtesy of MAZDA MOTORS CORP.
Install the snap ring.
Remove the SSTs.
Apply ATF to the plates of the low clutch.
CAUTION:
- If the dished plate is not installed in the specified direction, it may be damaged or not operate properly. Install the plate exactly as shown in the figure.

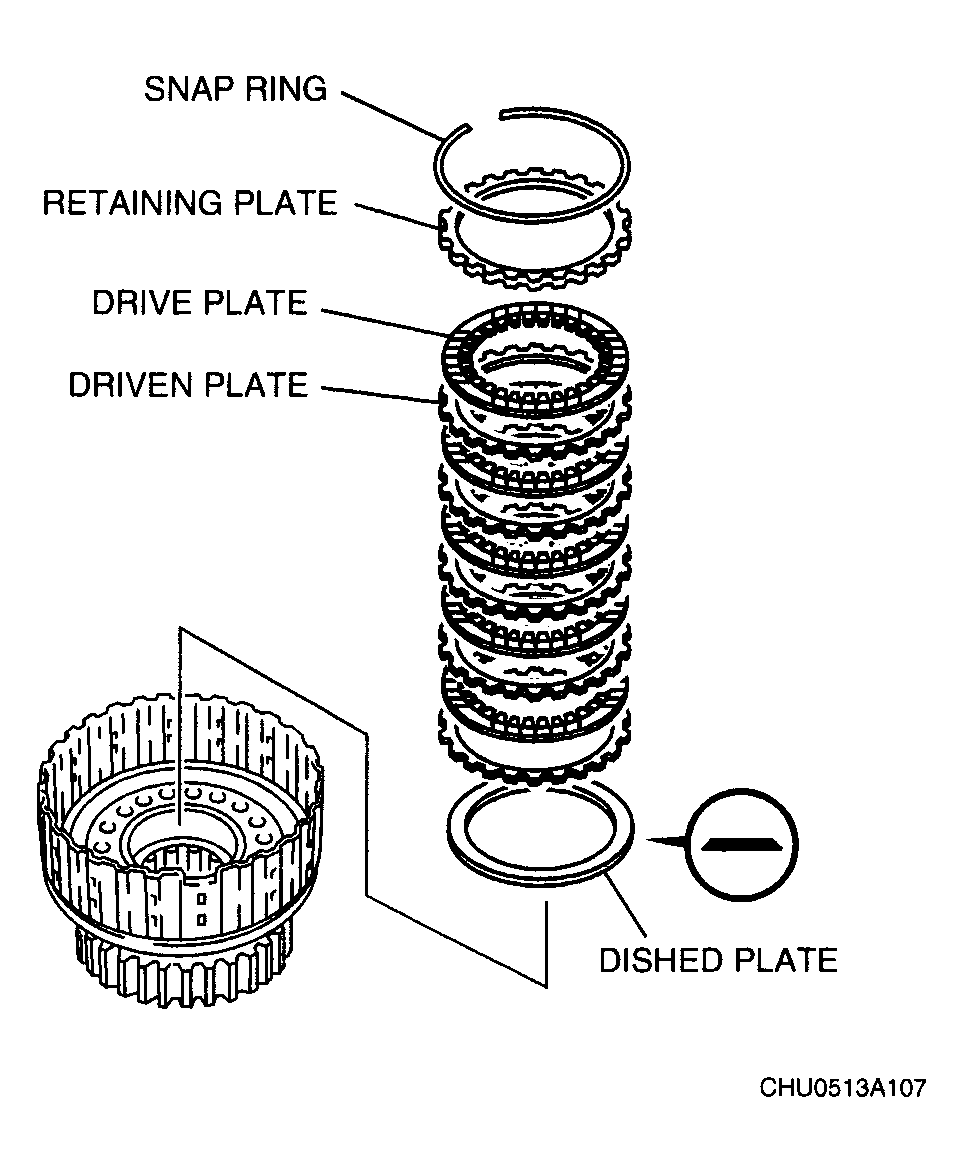

Install the plates and the snap ring to the low clutch drum in the following order:
Dished-Driven-Drive-Driven-Drive-Driven-Drive-Driven-Drive-Driven-Drive-Retaining

Fig 10: Installing Plates And Snap Ring To Low Clutch Drum
Courtesy of MAZDA MOTORS CORP.

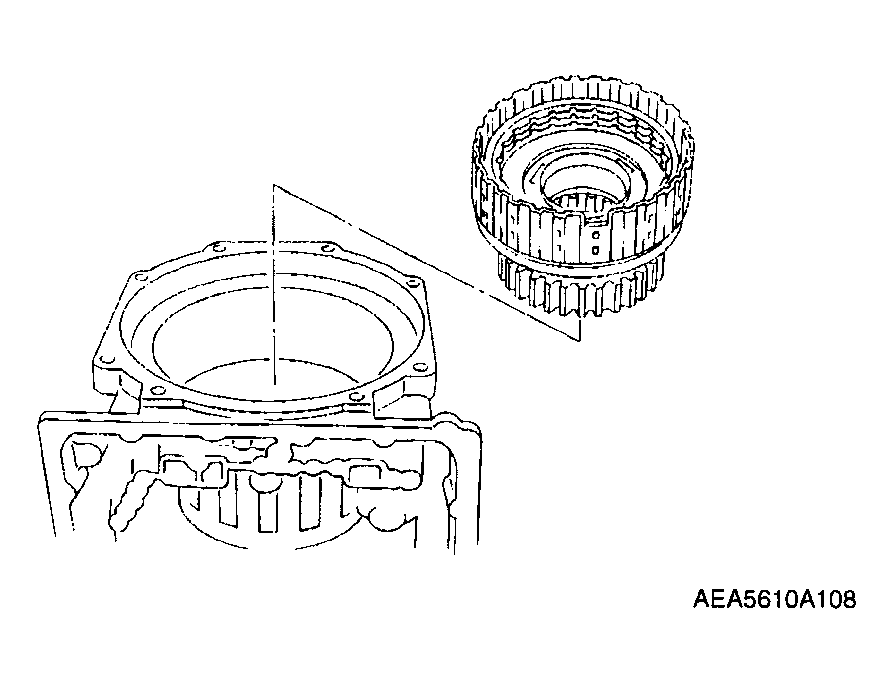

Install the low one-way clutch inner race to the transmission case.
Install the low clutch drum to the transmission case correctly.
WARNING:
- Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eye wear whenever using compressed air.
CAUTION:
- Applying compressed air to the assembled clutch pack for more than 3 s at a time will damage the seal.
- Do not apply compressed air for more than the aforementioned time when testing the system.
Fig 11: Installing Low Clutch Drum To Transmission Case
Courtesy of MAZDA MOTORS CORP.
Apply compressed air to the part indicated in the figure and inspect the low clutch operation.
- If there is any malfunction, inspect the seal rings.
Air pressure

390 kPa {4.0 kgf/cm ² , 57 psi} max.

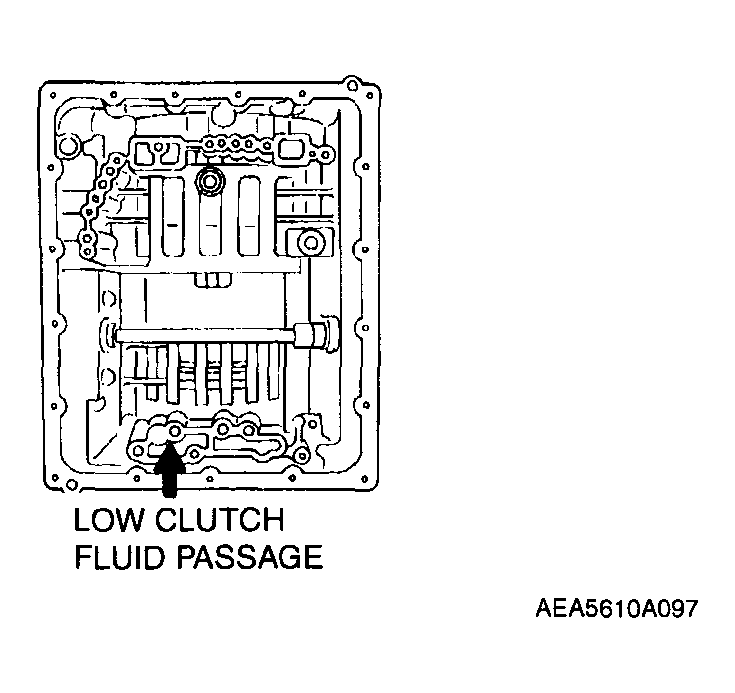

Fig 12: Applying Compressed Air To Low Clutch Fluid Passage
Courtesy of MAZDA MOTORS CORP.
Remove the low clutch drum from the transmission case.

Measure the clearance between the retaining plate and the snap ring.

If the clearance is not within the specification, adjust the clearance by installing the correct retaining plate.

Fig 13: Measuring Clearance Between Retaining Plate And Snap Ring

Courtesy of MAZDA MOTORS CORP.

Specification

0.9-1.3 mm {0.036-0.051 in}

Retaining plate sizes

mm {in}
3.8 {0.150}	4.0 {0.157}	4.2 {0.165}
4.4 {0.173}	4.6 {0.181}	4.8 {0.189}

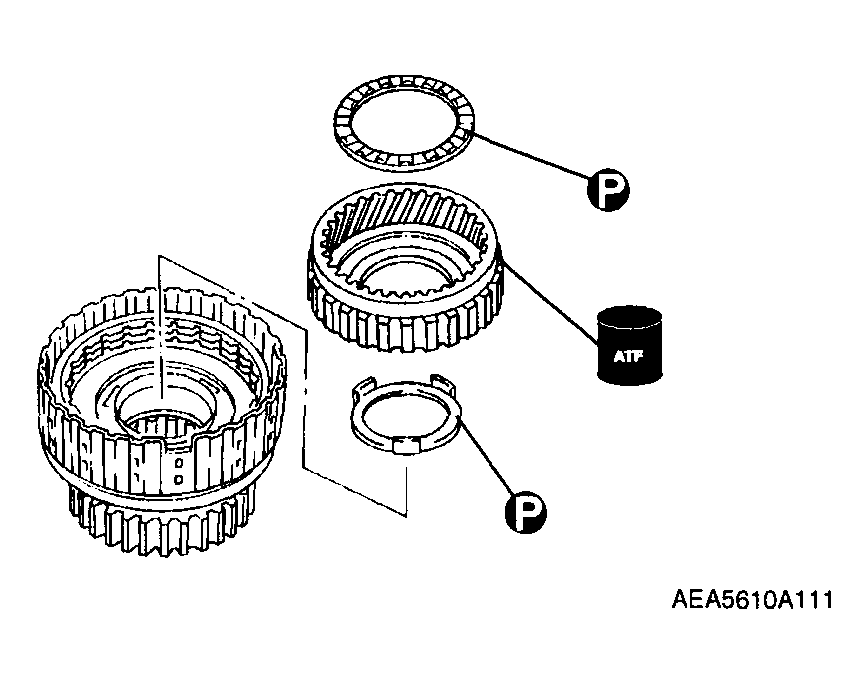

Install the bearing race, internal gear, and the bearing.

Fig 14: Installing Bearing Race, Internal Gear And Bearing
Courtesy of MAZDA MOTORS CORP.

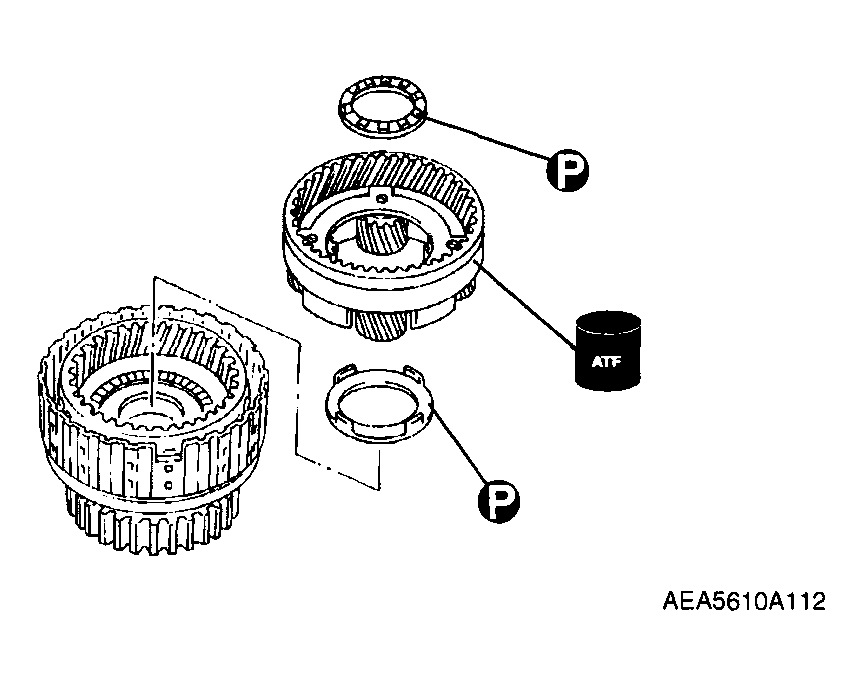

Install the bearing race, rear carrier, and the bearing.

Fig 15: Installing Bearing Race, Rear Carrier And Bearing
Courtesy of MAZDA MOTORS CORP.
Install the rear sun gear.

Fig 16: Installing Rear Sun Gear
Courtesy of MAZDA MOTORS CORP.
Install the bearing to the front carrier with the black surface facing rear side.

Fig 17: Installing Bearing To Front Carrier With Black Surface Facing Rear Side
Courtesy of MAZDA MOTORS CORP.
Install the front carrier, snap ring, and the bearing.

Fig 18: Installing Front Carrier, Snap Ring And Bearing
Courtesy of MAZDA MOTORS CORP.
