Power Steering Oil Pump (AJ) Disassembly/Assembly
WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- The following procedure is for replacement of the O-ring and oil seal only. Replace the pump component if other repairs are necessary.

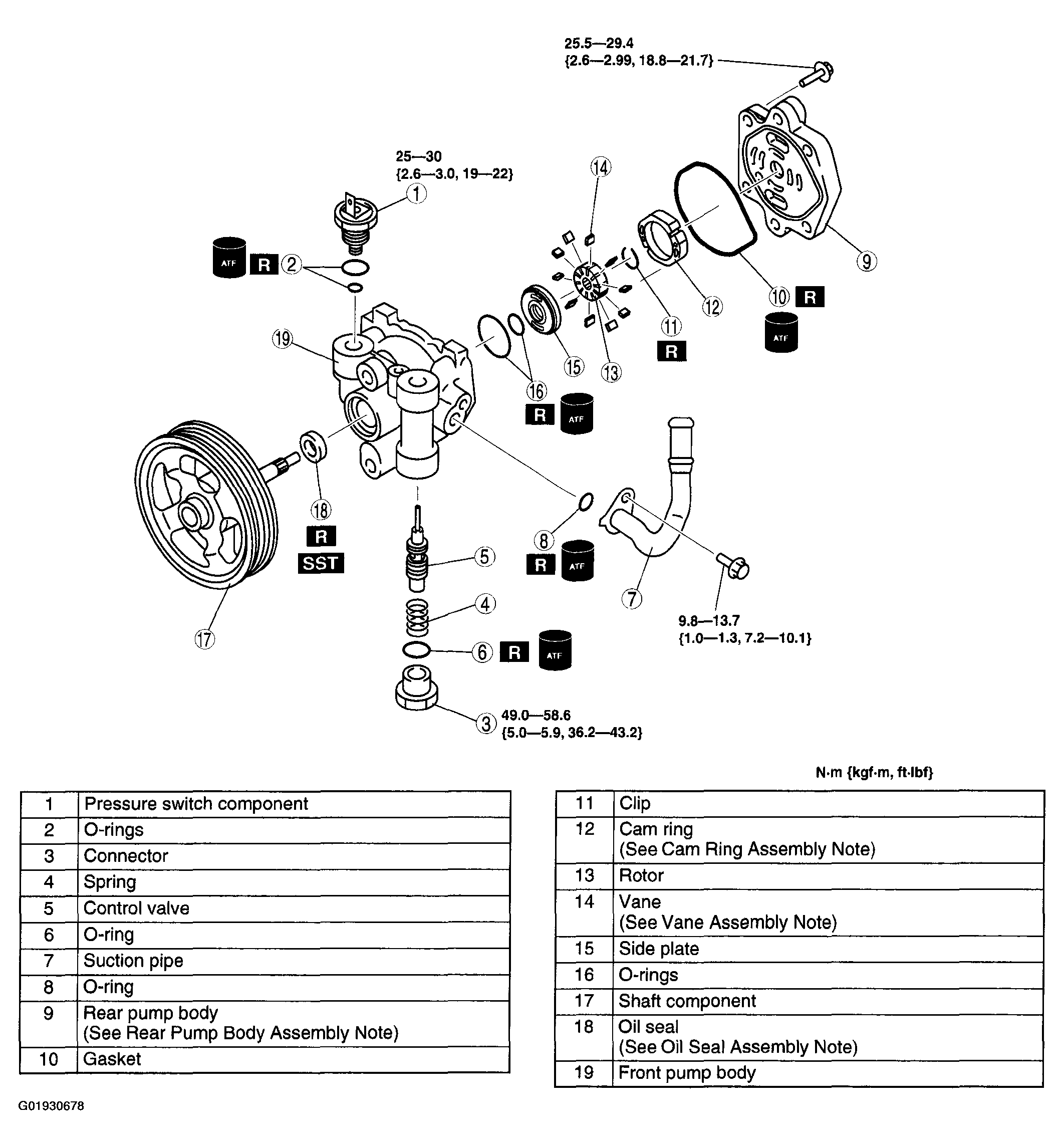

- Disassemble in the order indicated in Fig 1 .
- Assemble in the reverse order of disassembly.
