Fuel Gauge Sender Unit Inspection
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the fuel pump. (See FUEL PUMP (FP) REMOVAL/INSTALLATION [BP, BP WITH TC] .)

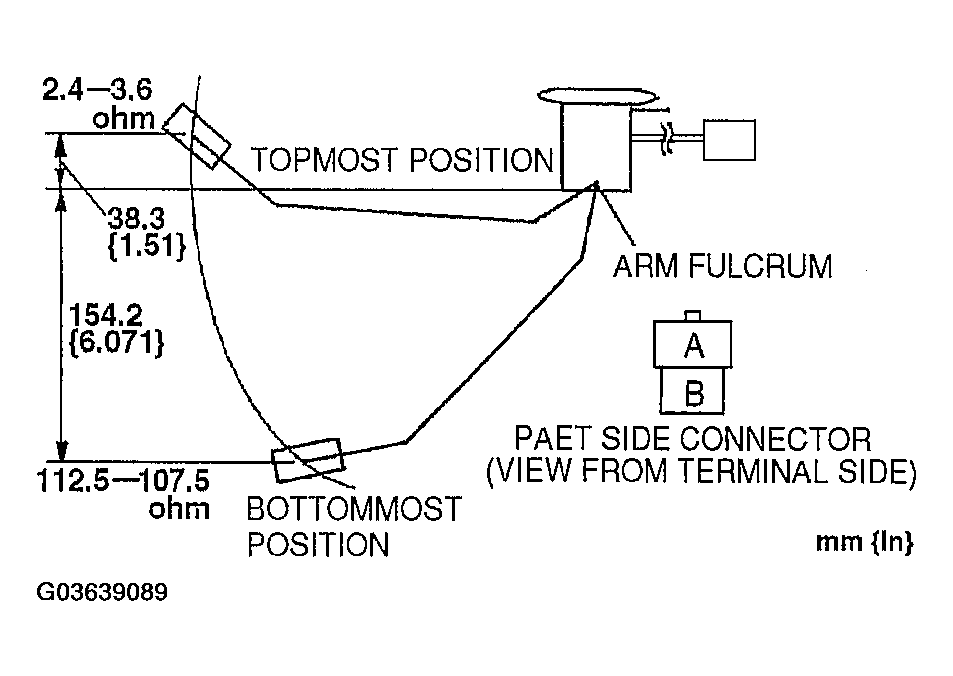

- Move the float to the topmost and bottommost positions, and verify that the resistance between terminals A and B of the unit and the position of the float are as indicated in the figure.
- If they are not as indicated, replace the fuel gauge sender unit. (See FUEL PUMP (FP) REMOVAL/INSTALLATION [BP, BP WITH TC] .)
