Windshield Washer Nozzle Adjustment

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a needle or equivalent tool into the spray holes of the windshield washer nozzle and adjust the nozzle direction as shown.

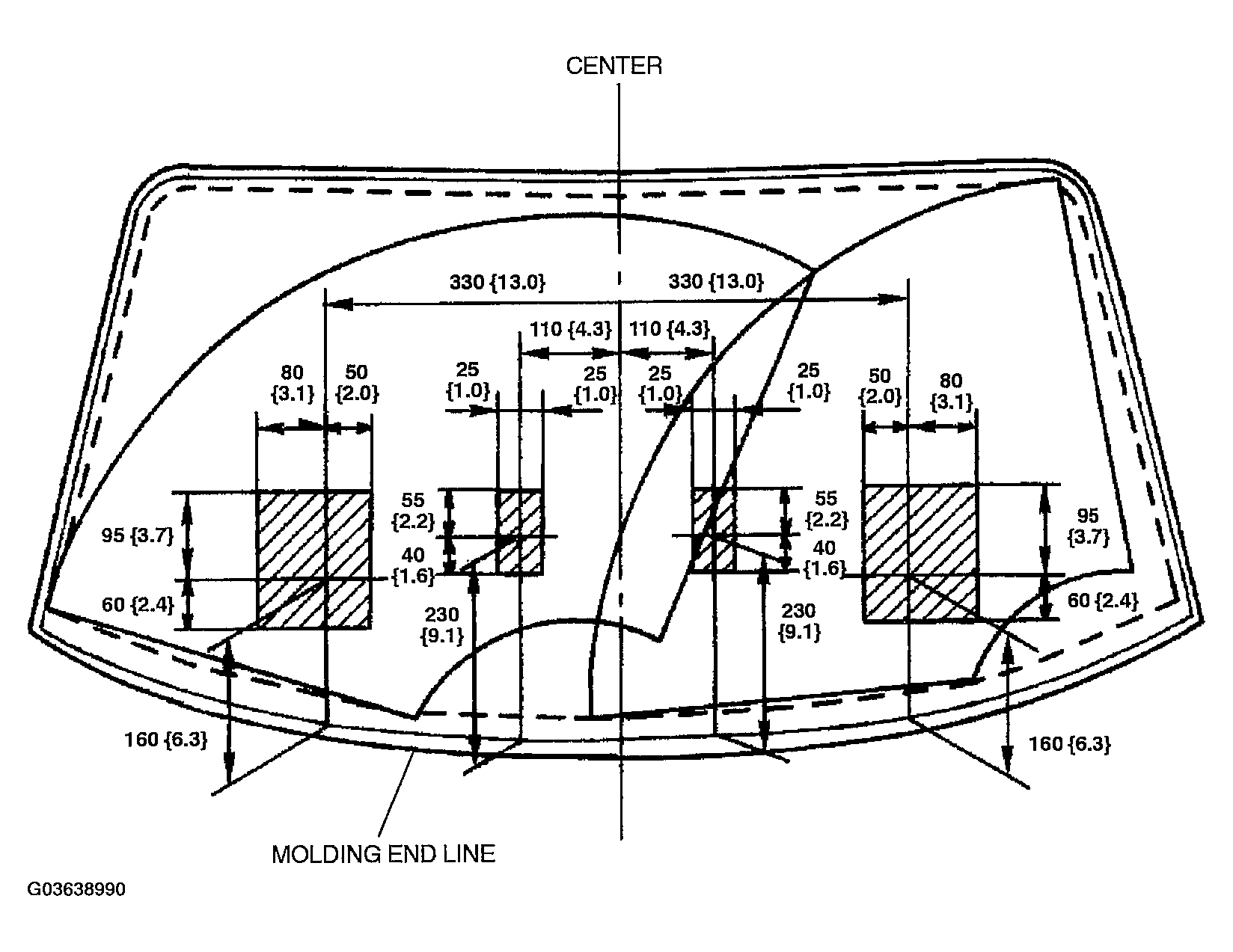

    Fig 1: Identifying Dimension Of Windshield Washer Nozzle Adjustment
    G03638990Courtesy of MAZDA MOTORS CORP.
