Front Fog Light Adjustment [BP With TC]

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Adjust the tire air pressure to the specification.
  2. Position the unloaded vehicle on a flat, level surface.
  3. Seat one person in the driver's seat.
  4. Position the vehicle straight ahead and perpendicularly to a wall.
  5. Set the front fog light 3 m {10 ft}  from the wall.
  6. While adjusting one front fog light, disconnect the connector of the other.
  7. Start the engine to charge the battery.
  8. Turn the front fog light on.
    Fig 1: Setting Front Fog Light 3m From Wall
    G03638923Courtesy of MAZDA MOTORS CORP.
  9. Adjust the front fog light as shown in Fig 2.

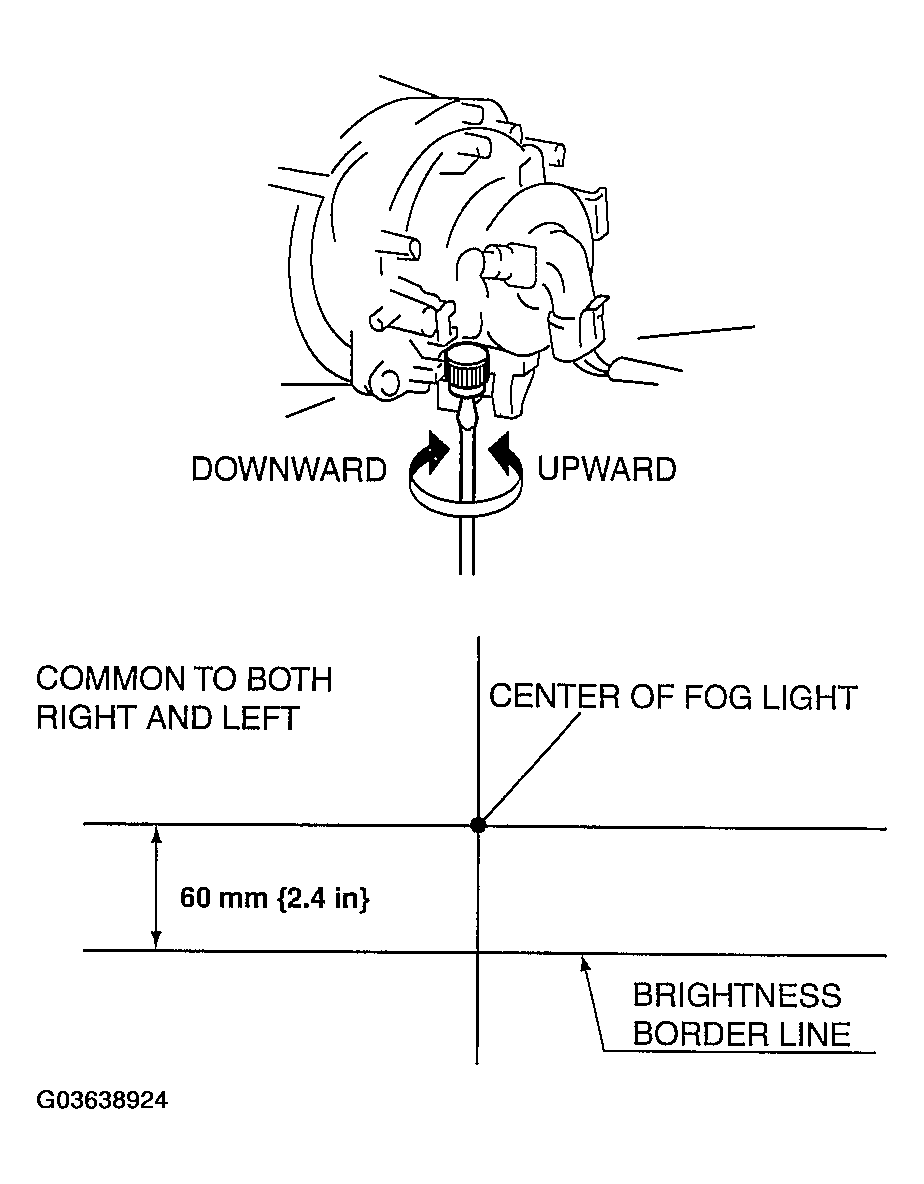

    Fig 2: Adjusting Front Fog Light
    G03638924Courtesy of MAZDA MOTORS CORP.
