Door Trim Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove the screw.
Remove the inner handle cover.
Remove the fasteners.

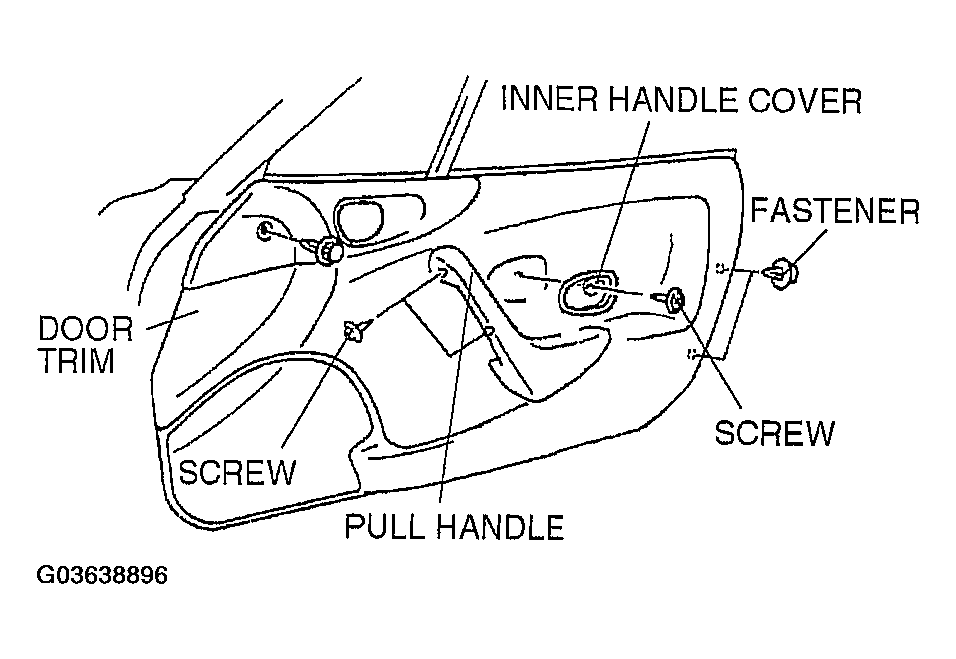

Fig 1: Removing Door Trim
Courtesy of MAZDA MOTORS CORP.
Pull the door trim, then disengage clips A and B from the body.
Lift the door trim, then disengage tabs C and D from the body.

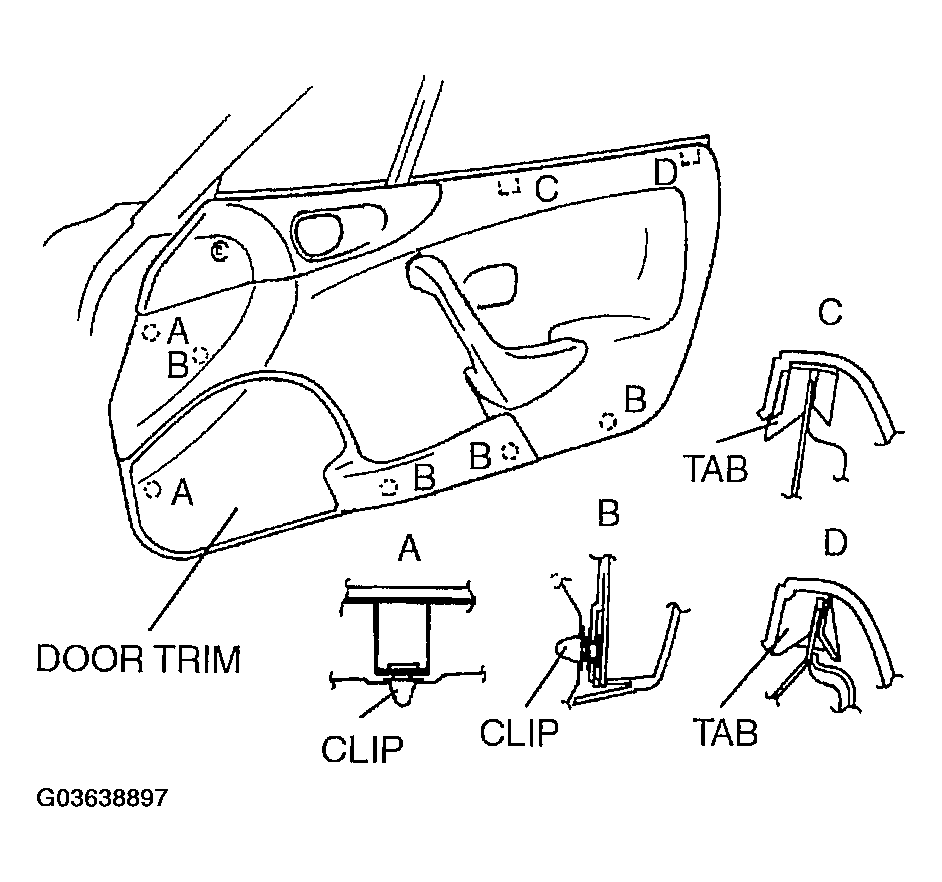

Fig 2: Identifying Door Trim Clips And Tabs
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
