A-Pillar Trim Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front header trim.

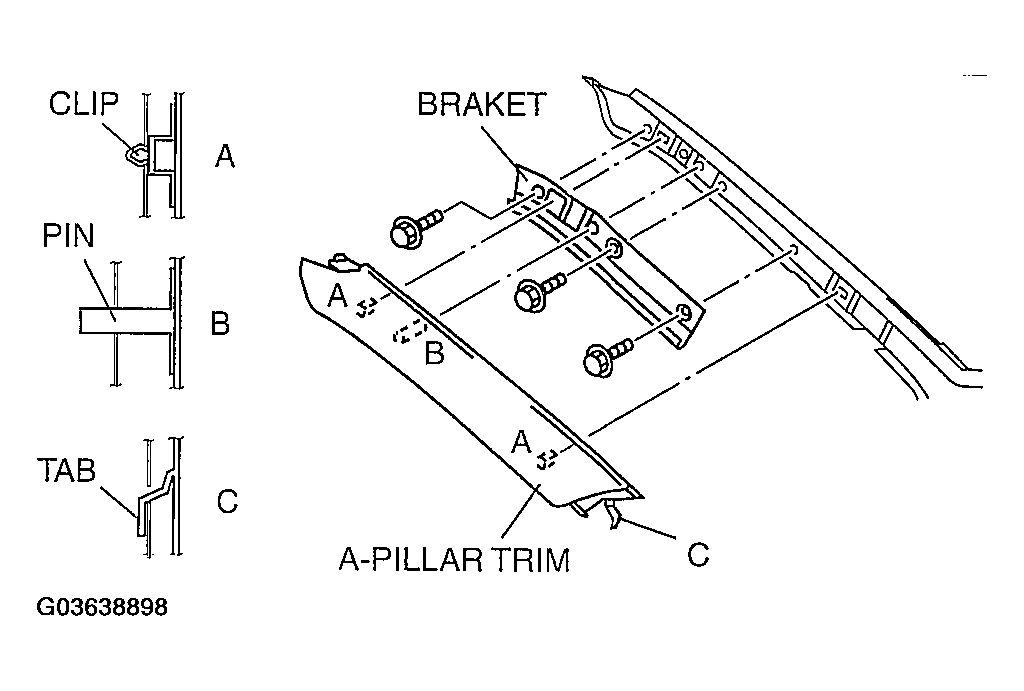

- Pull the A-pillar trim, then disengage clips A and pin B.
- Pull the A-pillar trim upward, then disengage tab C from the body.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
