Top Fabric Installation Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Place the top fabric onto the link.
Install the top fabric from the rear bow to the front bow.
Roll the top fabric over the bow retainer.
Hang the end of the top fabric on the bow retainer.

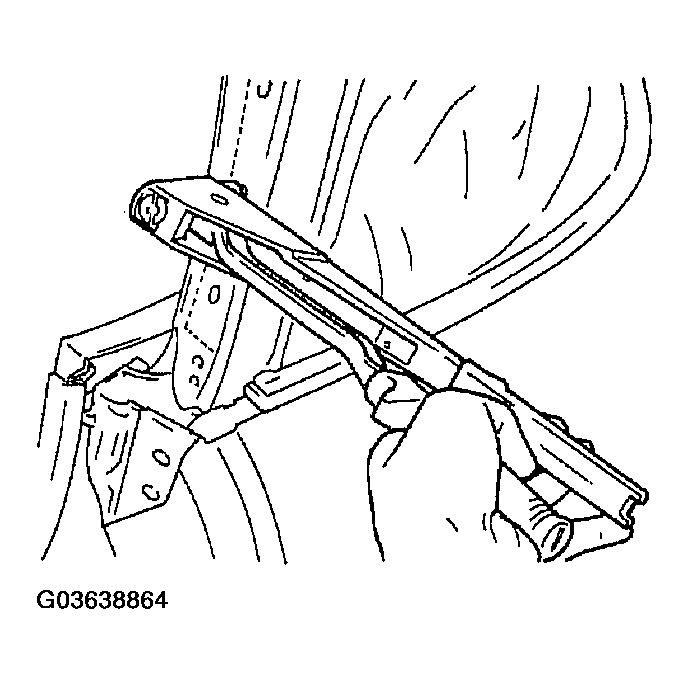

Clamp the top fabric to the bow using water pump pliers which have been wrapped in tape.

Fig 1: Clamping Top Fabric To Bow
Courtesy of MAZDA MOTORS CORP.
Pull the top fabric by hand to verify that it is held securely.
Insert a metal rod into the fabric as shown, tie the cable around the rod, and pull the cable through the fabric.
Raise the convertible top as shown in the figure.

Fig 2: Inserting A Metal Rod Into Fabric
Courtesy of MAZDA MOTORS CORP.
Install the screw.

Fig 3: Installing Screw
Courtesy of MAZDA MOTORS CORP.
Rivet the top fabric upper side to the link.
Peel the top fabric end.

Fig 4: Riveting Top Fabric Upper Side To Link
Courtesy of MAZDA MOTORS CORP.
Rivet the top fabric lower side to the link.
NOTE:
- If the lower side rivet is difficult to install to the link, install the top fabric using a Tinnerman clip and a screw.
Fig 5: Riveting Top Fabric Lower Side To Link
Courtesy of MAZDA MOTORS CORP.
