Vertical Adjustment

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Measure the upper edge of the door glass and the retainer.

If not as specified, loosen the glass stopper installation bolts, move the glass stopper up or down and reposition the door glass.

DOOR GLASS VERTICAL ADJUSTMENT CLEARANCE SPECIFICATION

mm {in}
Clearance	Standard	Minimum	Maximum
a	9.6 {0.38}	6.6 {0.26}	12.6(0.50}
b	9.3 {0.37}	6.3 {0.25}	12.3{0.48}

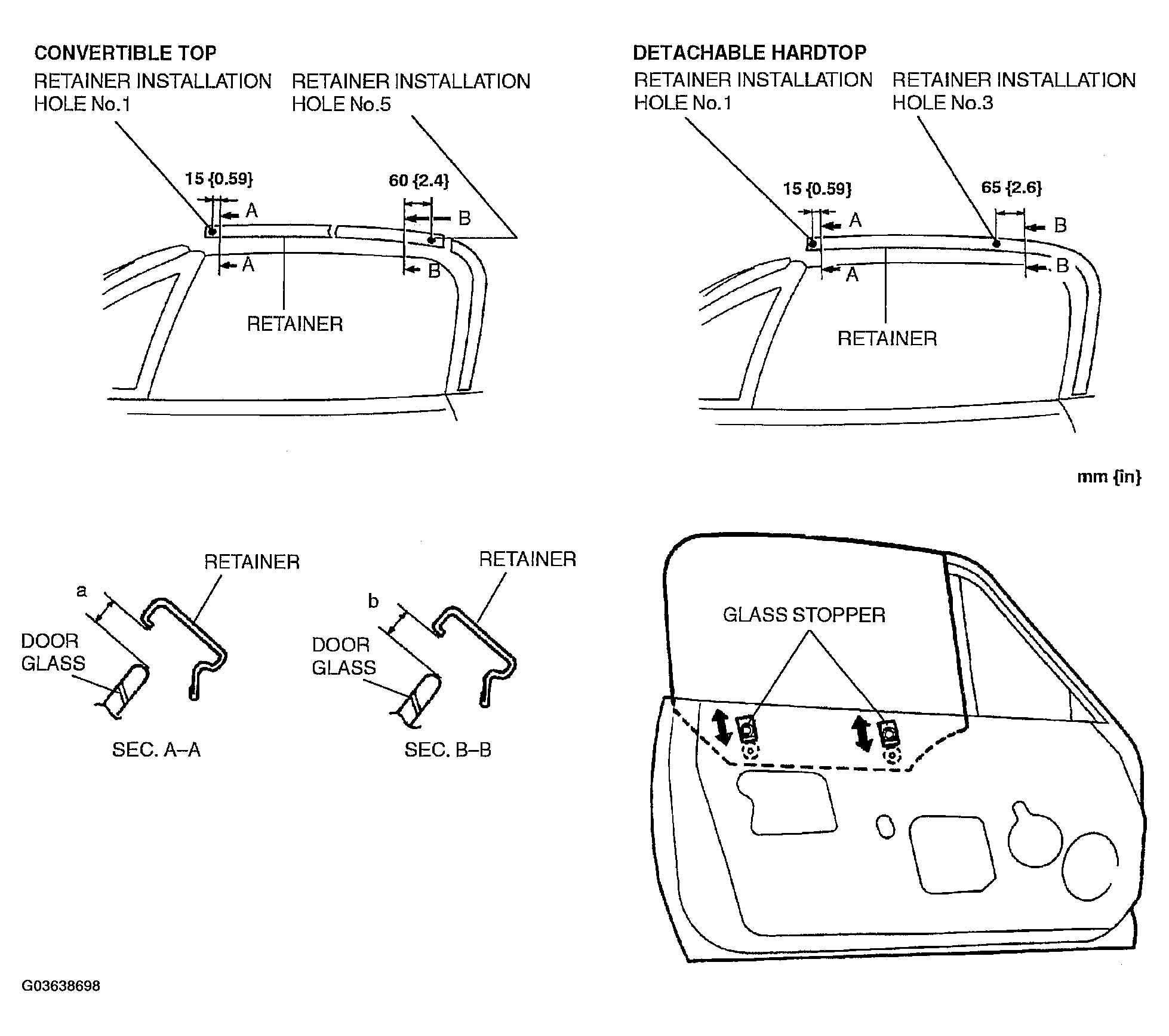

Fig 1: Adjusting Door Glass - Vertical Clearance

Courtesy of MAZDA MOTORS CORP.

Tighten the bolts.
