Inward/Outward Adjustment

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Measure the upper and rear edge of the door glass and the retainer.

If not as specified, loosen the lower side of the window regulator installation nuts and that of the rear glass guide installation nuts, move the window regulator and the rear glass guide inward or outward and reposition the door glass.

DOOR GLASS INWARD/OUTWARD ADJUSTMENT CLEARANCE SPECIFICATION

mm {in}
Clearance	Standard	Minimum	Maximum
a	9.6 {0.38}	6.6 {0.26}	12.6 {0.50}
b	7.8(0.31}	4.8 {0.19}	10.8 {0.43}
c	6.2 {0.24}	3.2 {0.13}	9.2 {0.36}
d	10.8 {0.43}	7.8 {0.31}	13.8 {0.54}

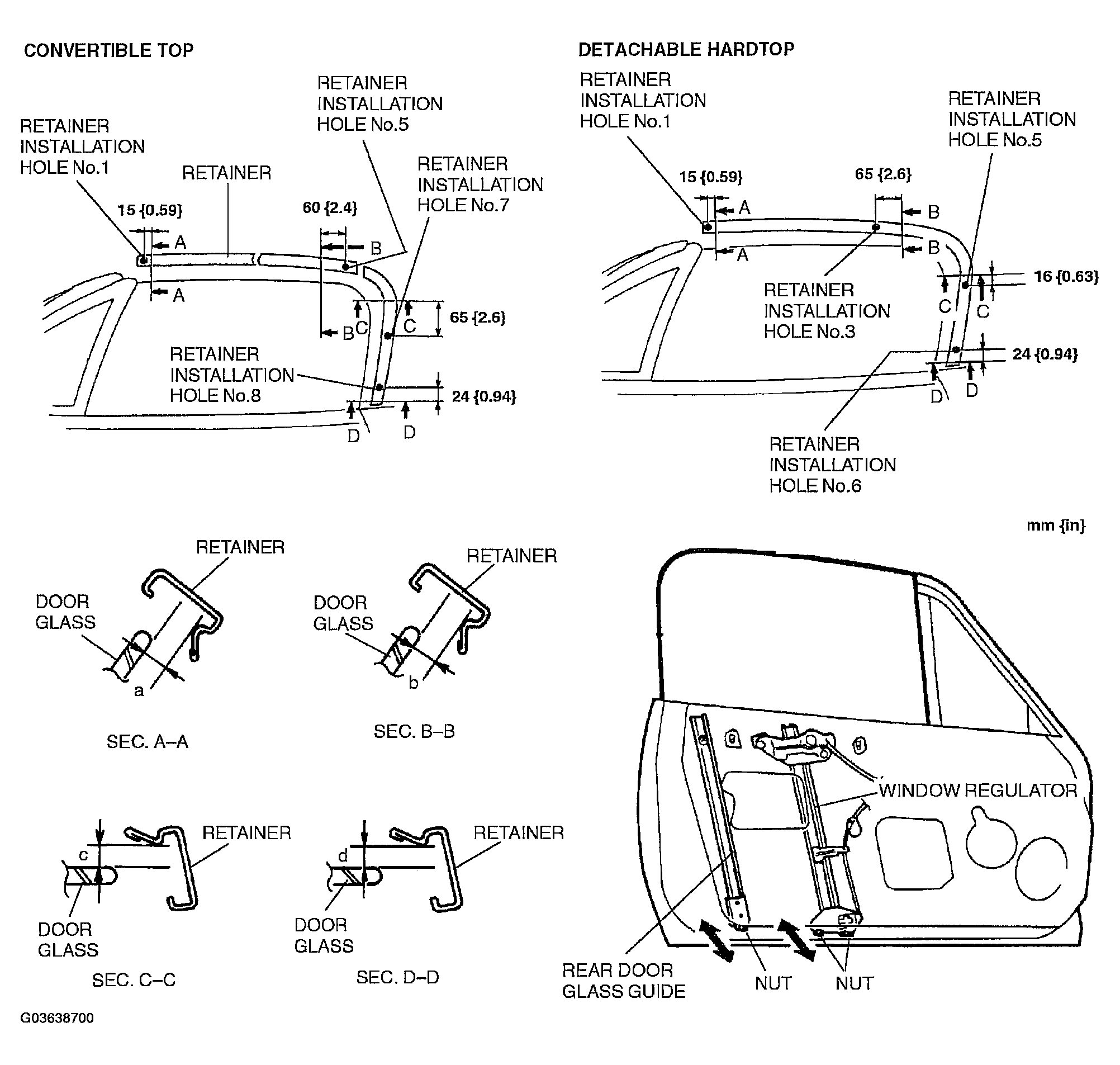

Fig 1: Adjusting Door Glass - Inward/Outward Clearance

Courtesy of MAZDA MOTORS CORP.

Tighten the nuts.
