Passenger Air Bag Deactivation (Pad) Switch Warning Light Bulb And Passenger Air Bag Deactivation (Pad) Switch Illumination Bulb Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the center panel. (See CENTER PANEL REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

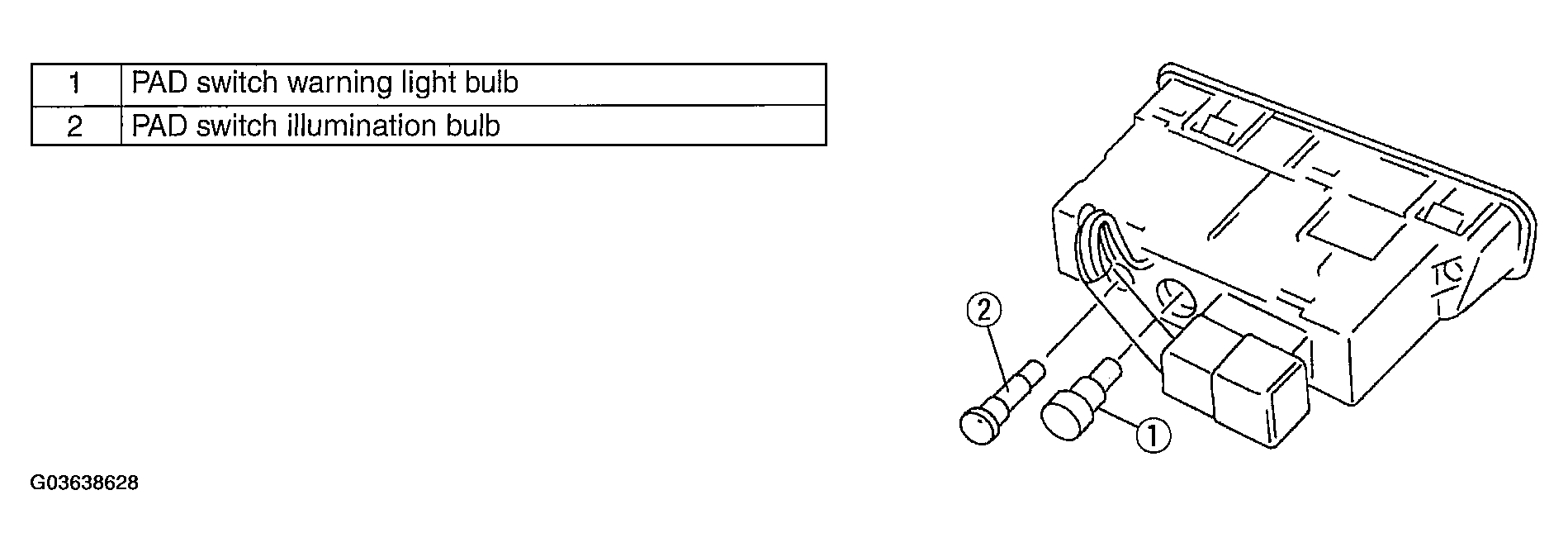

    Fig 1: Removing PAD Switch Warning Light Bulb And PAD Switch Illumination Bulb
    G03638628Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
