Crush Zone Sensor Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Handling the crush zone sensor improperly can accidentally deploy the air bag modules and pre-tensioner seat belts, which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the crush zone sensor. (See AIR BAG SYSTEM SERVICE WARNINGS .)

Turn the ignition switch to LOCK position.
Disconnect the negative battery cable and wait for more than 1 minute.
Remove in the order indicated in the table.

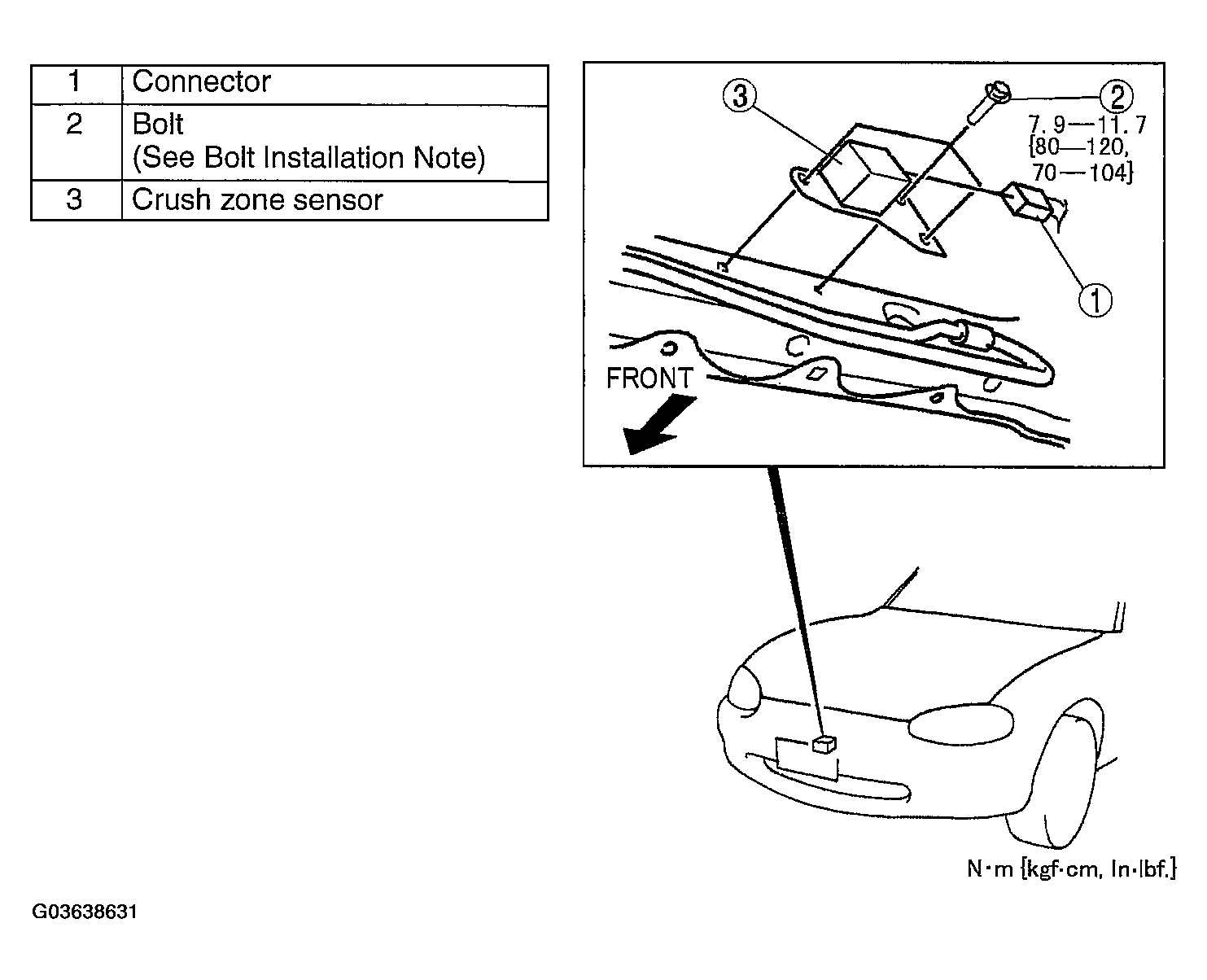

Fig 1: Removing Crush Zone Sensor - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Turn the ignition switch to ON position.
Verify that the air bag system warning light illuminates for approximately 6 seconds and then goes off.
- If the air bag system warning light does not operate in the manner described above, there are malfunctions in the system. Inspect the system using the on-board diagnostic function. (Refer to FOREWORD .)

Bolt Installation Note

Tighten the bolts in the order shown in Fig 2.

Fig 2: Tightening Crush Zone Sensor Bolts In Order
Courtesy of MAZDA MOTORS CORP.
