DTC Table
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- DTCs are common for present and past malfunction diagnosis.
NOTE:
- When DTCs not shown in the DTC table are displayed, replace the SAS control module.
- After a new SAS control module is installed, the air bag system warning light continuously flashes when the ignition switch is turned to the ON position. This is the deployment authorization standby code output by the SAS control module. Perform the deployment authorization and restore the system to an operational state.
- If the air bag system warning light does not illuminate or remains illuminated when the ignition switch is turned to the ON position, inspect and repair the air bag system warning light circuitry and then confirm that the air bag system warning light is operational.

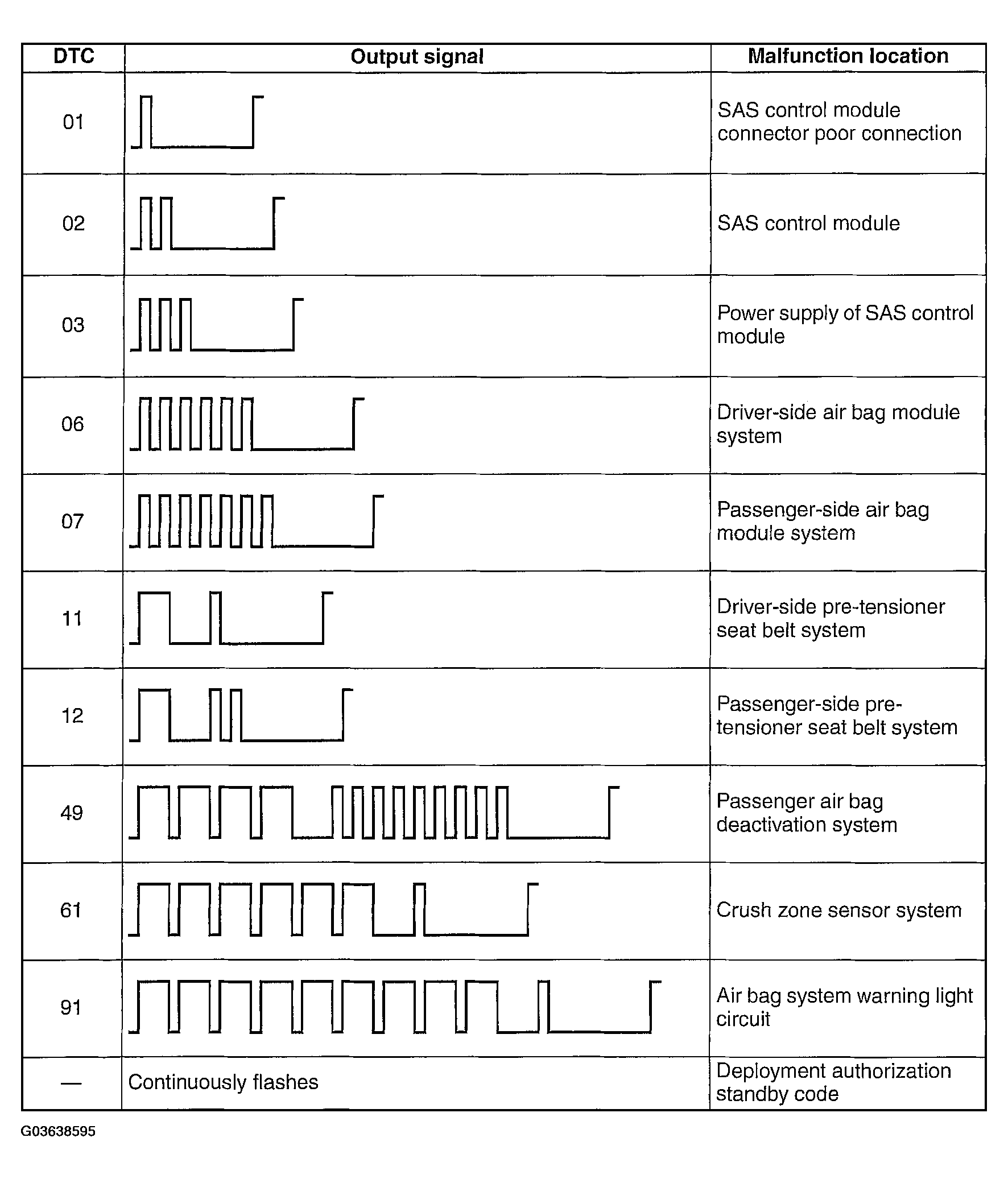

DTC INDEX
| DTC | Description |
|---|---|
| DTC 01 | SAS Control Module Connector Poor Connection |
| DTC 02 | SAS Control Module |
| DTC 03 | Power Supply Of SAS Control Module |
| DTC 06 | Driver-Side Air Bag Module System |
| DTC 07 | Passenger-Side Air Bag Module System |
| DTC 11 | Driver-Side Pre-Tensioner Seat Belt System |
| DTC 12 | Passenger-Side Pre-Tensioner Seat Belt System |
| DTC 49 | Passenger Air Bag Deactivation System |
| DTC 61 | Crush Zone Sensor System |
| DTC 91 | Air Bag System Warning Light Circuit |
