DTC 06: Driver-Side Air Bag Module System: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

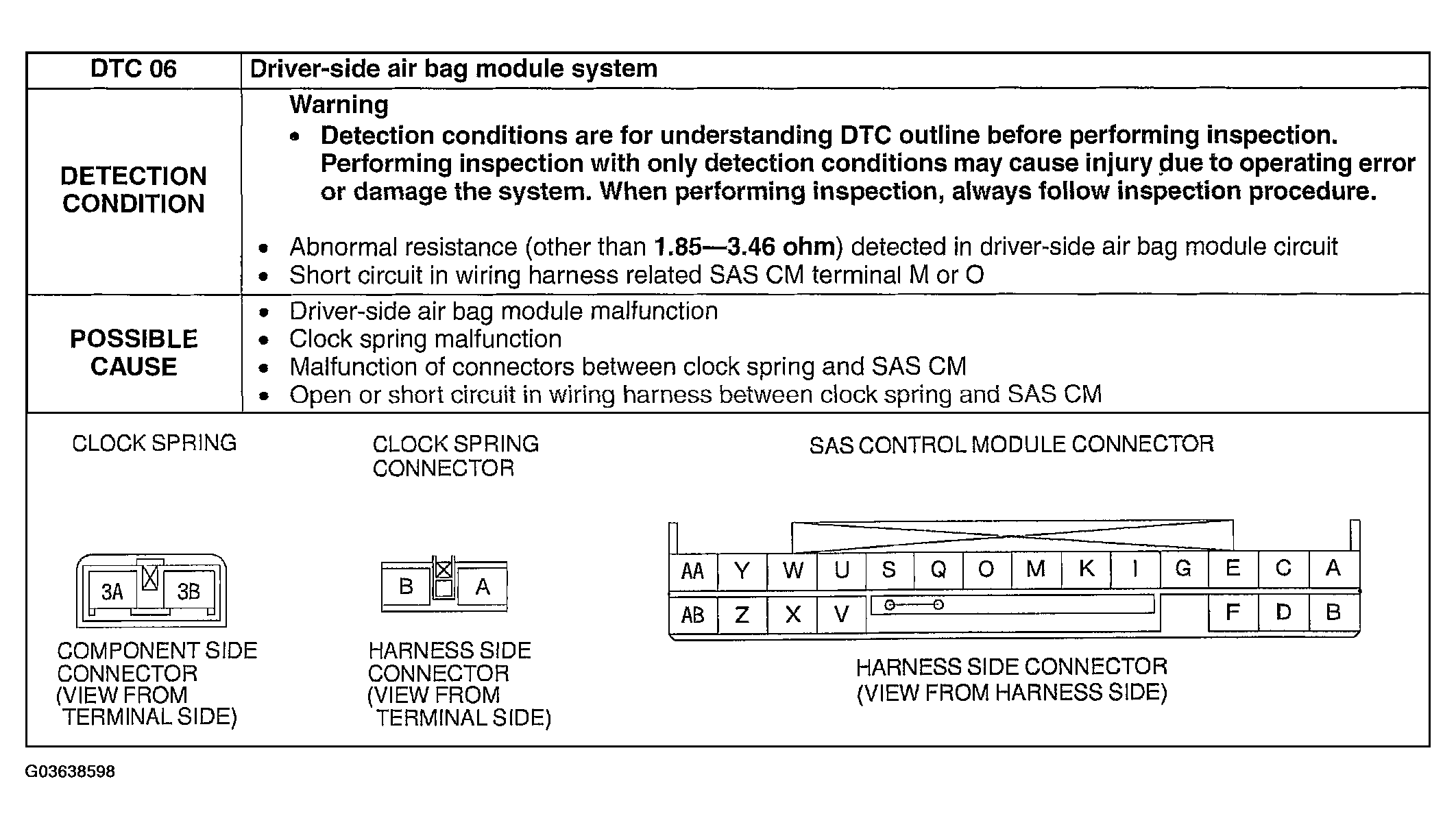

Fig 1: DTC 06 - Detection Condition And Possible Cause
G03638598Courtesy of MAZDA MOTORS CORP.
