Steering Lock Mounting Bolts and Bracket Assembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the steering lock component. Install the new steering lock mounting bolts. Tighten the bolts until the heads break off.

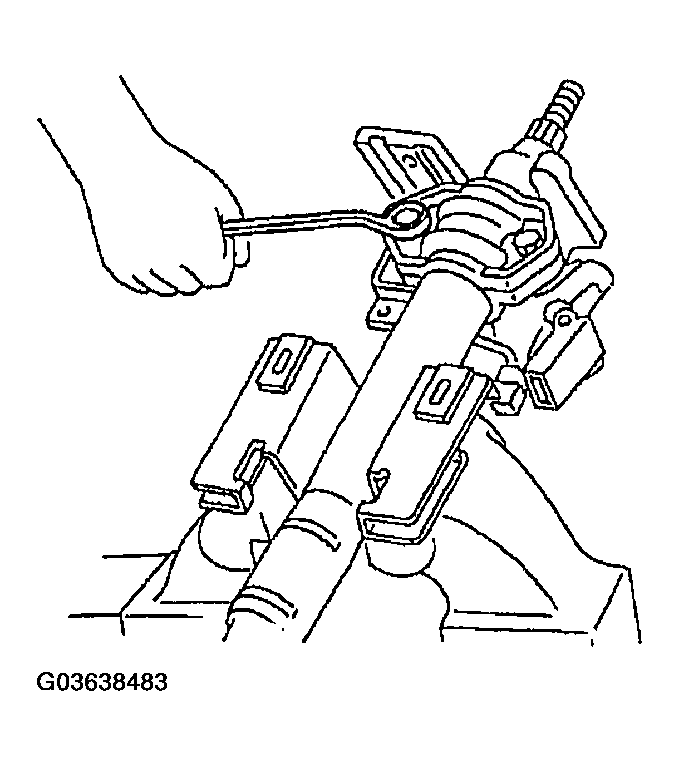

    Fig 1: Installing Steering Lock Mounting Bolts
    G03638483Courtesy of MAZDA MOTORS CORP.
