Oil Seal, Inner Guide Disassembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the SSTs  into the valve side.
  2. Press out the oil seal and inner guide.

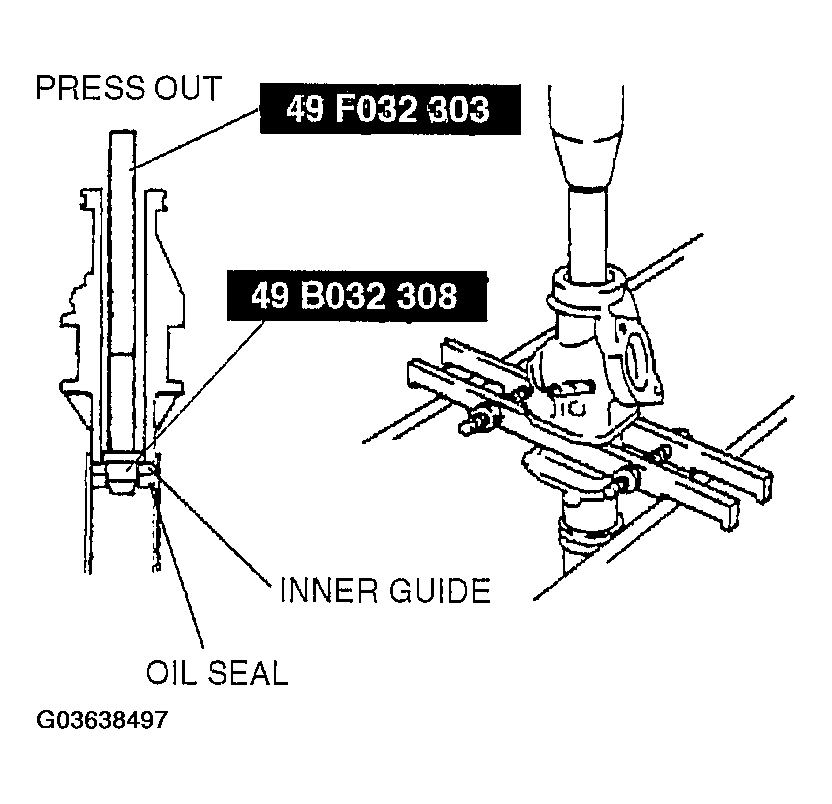

    Fig 1: Pressing Out Oil Seal And Inner Guide
    G03638497Courtesy of MAZDA MOTORS CORP.
