Key Interlock Solenoid Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the column cover.
- Disconnect the key interlock solenoid connector.

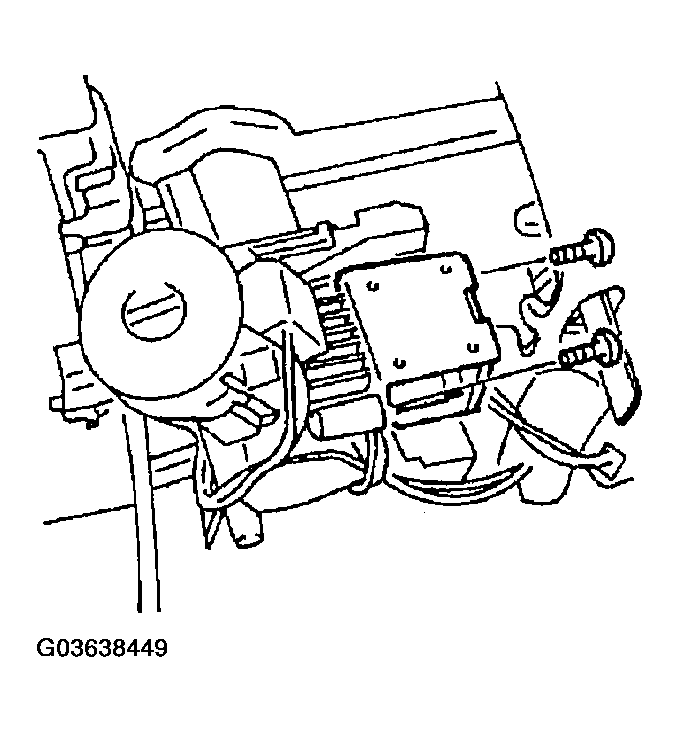

- Remove the screws and the key interlock solenoid.
- Install the key interlock solenoid and tighten the screws.
Tightening torque
6.9-12.7 N.m {70-130 kgf.cm, 61-112 in.lbf}
- Verify that the key interlock solenoid operates.
- Connect the key interlock solenoid connector.
- Install the column cover.
- Connect the negative battery cable.
