WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
Set the SST
against the drive plate.
Tighten the drive plate mounting bolts gradually in the order shown.
Tightening torque
97-102 N.m {9.8-10.5 kgf.m, 71-75 ft.lbf}

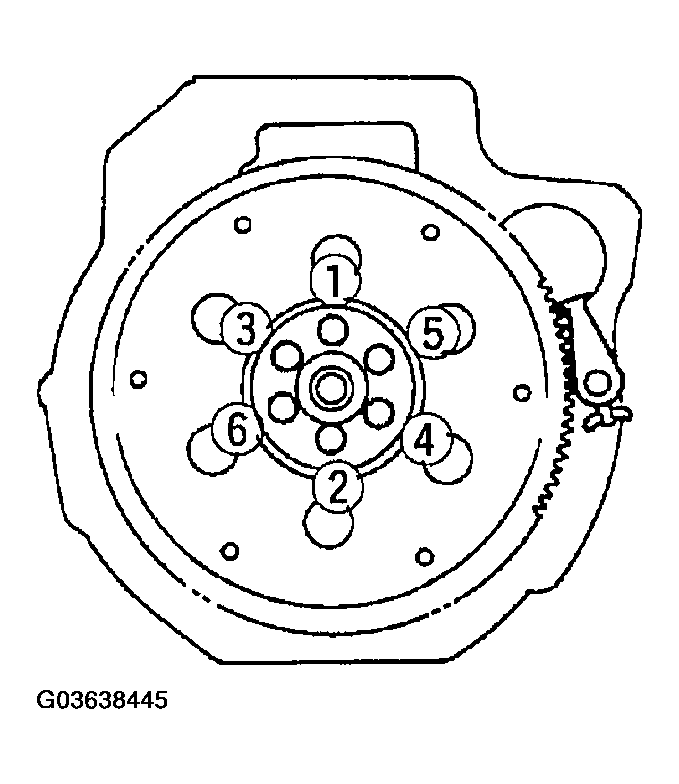

Fig 1: Tightening Drive Plate Mounting Bolts In Sequence
