On-Vehicle Removal

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Clean the transmission exterior thoroughly with a steam cleaner or cleaning solvents.
Disconnect the negative battery cable.
Drain the ATF. (See AUTOMATIC TRANSMISSION FLUID (ATF) REPLACEMENT .)
Remove the oil pan and gasket.
CAUTION:
- To prevent deformation of the tube, remove the tube by pulling both ends up.
Remove the tubes.

Fig 1: Removing Tube
Courtesy of MAZDA MOTORS CORP.

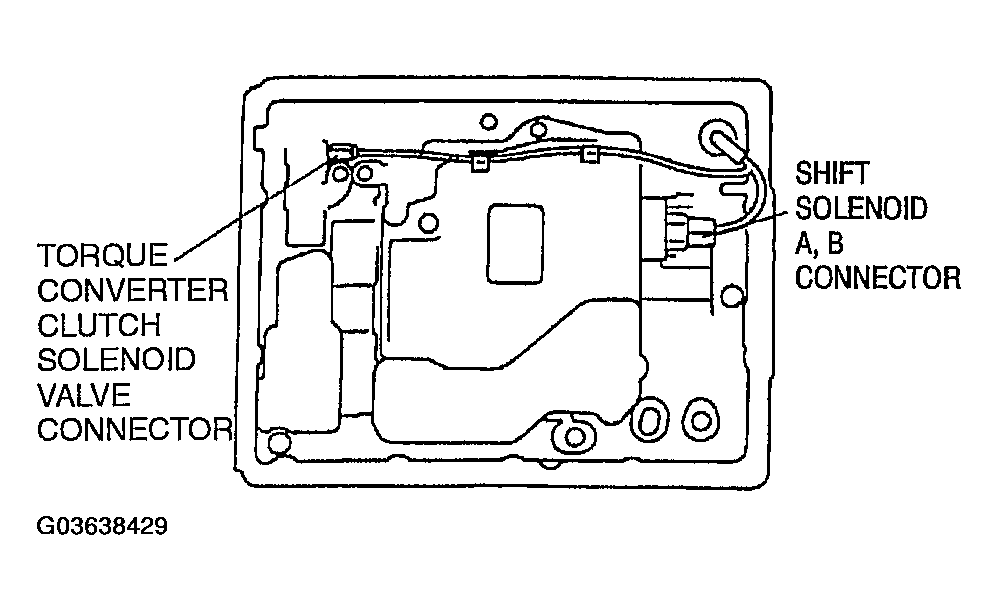

Disconnect shift solenoids A, B, and torque converter clutch solenoid valve connectors.

Fig 2: Disconnecting Shift Solenoids And Torque Converter Clutch Solenoid Valve Connectors
Courtesy of MAZDA MOTORS CORP.
Remove the oil strainer.

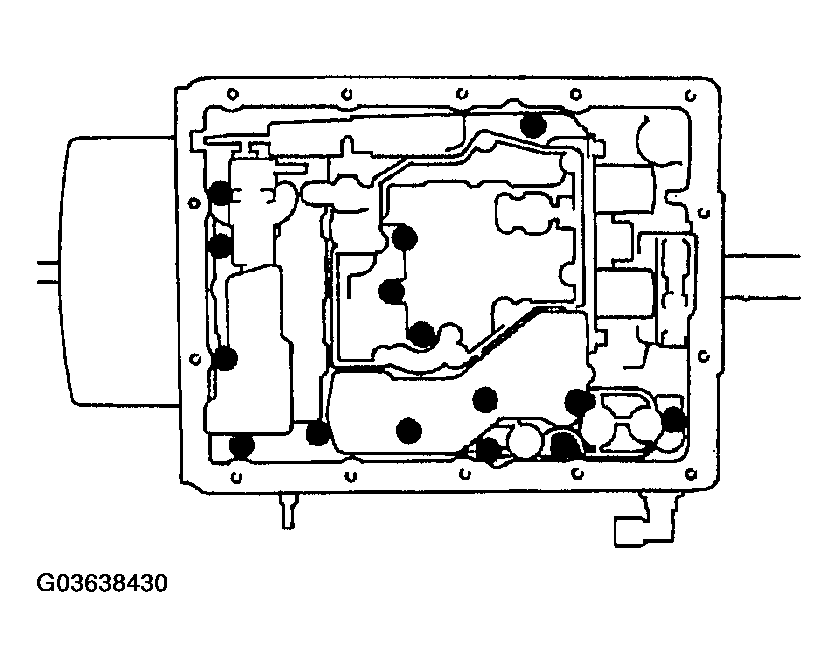

Remove the control valve body installation bolts.

Fig 3: Removing Control Valve Body Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the nipple of the throttle cable from the throttle cam.
Remove the control valve body.
Remove the accumulator spring.

Fig 4: Removing Control Valve Body
Courtesy of MAZDA MOTORS CORP.
