Power Plant Frame (PPF) Installation Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Install the differential mounting spacer.
Support the transmission on a jack so that it is level.

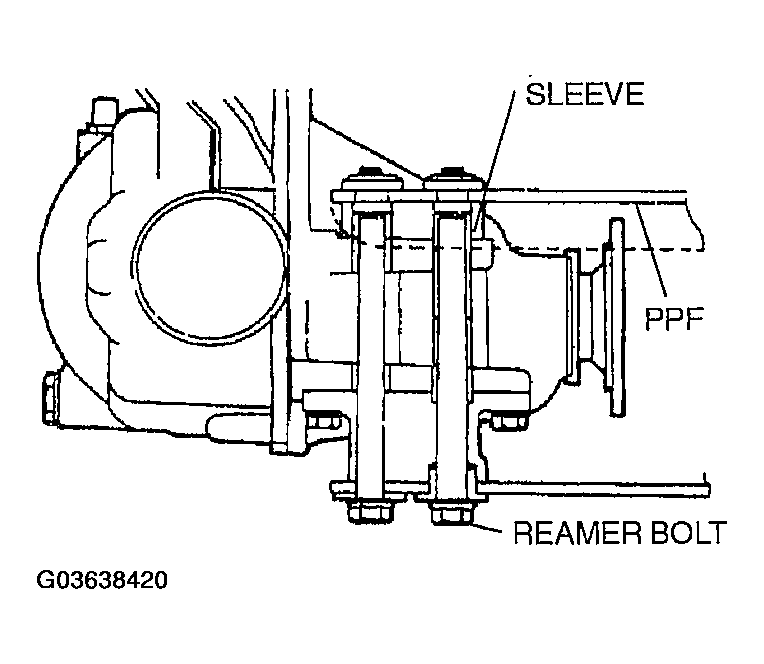

Position the PPF and install the sleeve.
Install the spacer and bolts, and tighten the reamer bolt firmly. The reamer bolt should be installed in the forward hole.

Fig 1: Installing Differential Mounting Spacer
Courtesy of MAZDA MOTORS CORP.
Tighten the outer bolts snugly.
Tightening torque
1. 104-123 N.m {10.6-12.6 kgf.m, 77-91 ft.lbf}
Fig 2: Tightening Outer Bolts
Courtesy of MAZDA MOTORS CORP.
Tighten the bolts to the specified torque in the order shown.
Tightening torque
1. 104-123 N.m {10.6-12.6 kgf.m, 77-91 ft.lbf}

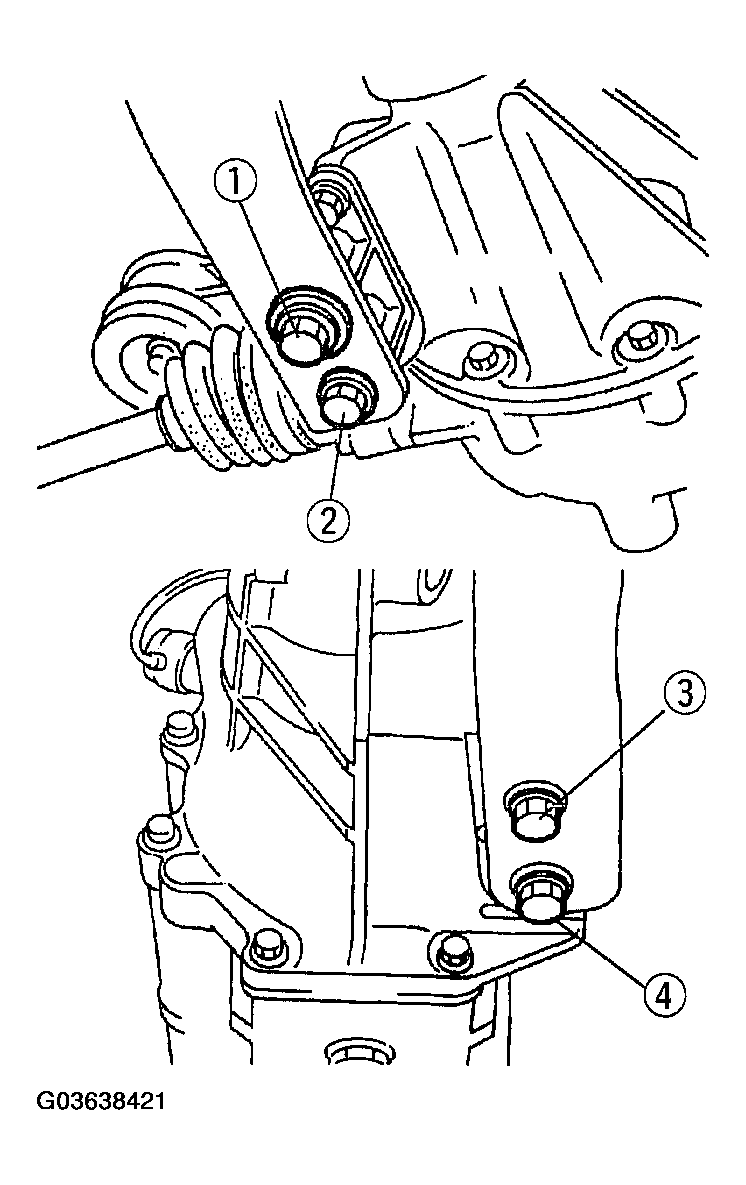

Fig 3: Tightening Bolts In Sequence
Courtesy of MAZDA MOTORS CORP.
Remove the jack.
Measure distance A using a straightedge and vernier calipers.
- If the distance is not within the specification, reposition the power plant frame at the transmission.
  Distance A
  1. 50.5-62.5 mm {1.99-2.46 in}
Fig 4: Measuring Distance A
Courtesy of MAZDA MOTORS CORP.
