Oil Seal (Rear) Replacement

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle and support it with safety stands.
  2. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
  3. Remove the oil seal from the extension housing.
  4. Apply the specified oil to a new oil seal.
  5. Install the new oil seal using the SST.

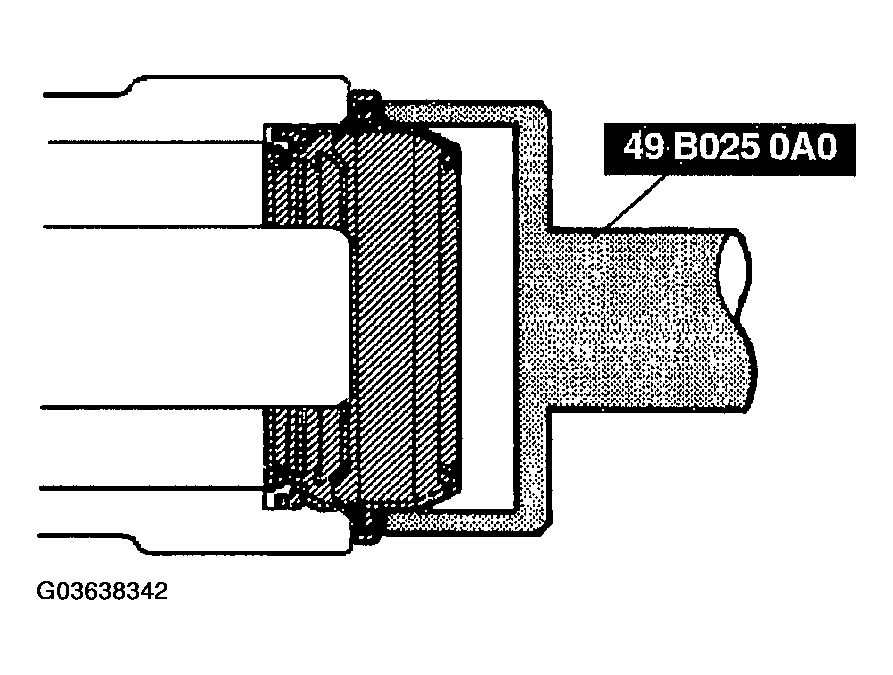

    Fig 1: Installing Oil Seal Using SST
    G03638342Courtesy of MAZDA MOTORS CORP.
  6. Install the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
  7. Inspect the oil level. (See TRANSMISSION OIL INSPECTION .)
