Transmission Installation Note
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

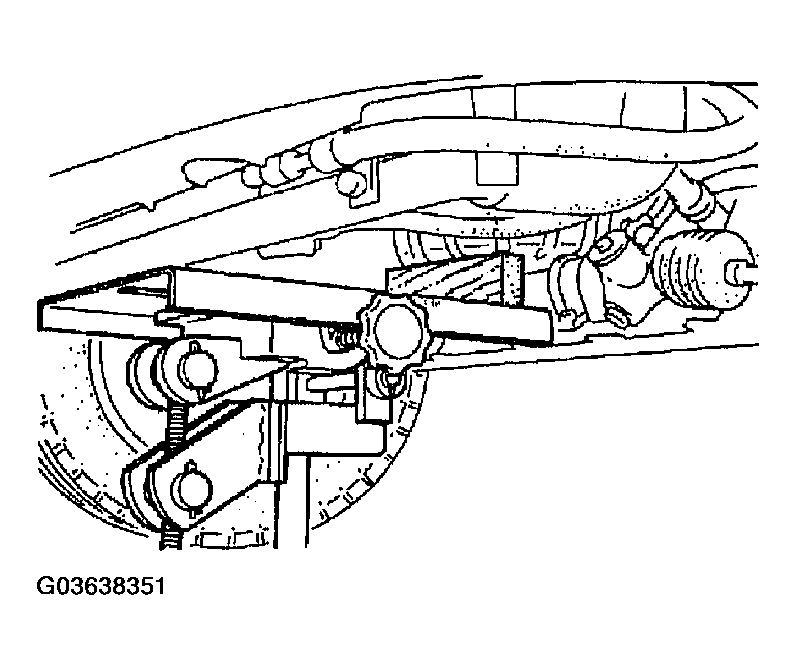

- Tilt the engine by pushing up on the front of the oil pan with a wooden block and a transmission jack.
- Support the transmission with a transmission jack.
- Raise the transmission into place and install and tighten the installation bolts.
Tightening torque
64-89 N.m {6.5-9.1 kgf.m, 48-65 ft.lbf}
