Shift Lever Component Installation Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The change control case must also be filled with the specified amount of oil whenever the extension housing has been removed or the transmission has been overhauled.

Pour the specified amount of oil into the change control case.
Specified oil

Grade:API service GL-4 or GL-5

Viscosity:SAE 75W-90

Capacity (approximate quantity):80-95 ml (80-95 cc, 4.9-5.8 cu in}

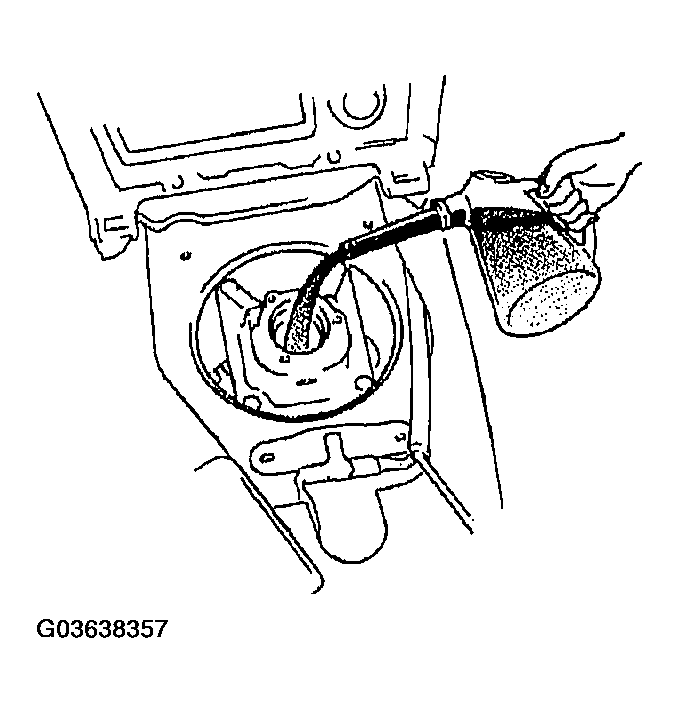

Fig 1: Pour Specified Amount Of Oil Into Change Control Case
Courtesy of MAZDA MOTORS CORP.
Apply grease to the shift lever component as shown in the figure.
Apply sealant to the contact surfaces of the shift lever component and the change control case.
Install the shift lever component.

Fig 2: Applying Grease To Shift Lever Component
Courtesy of MAZDA MOTORS CORP.
