Manual Transmission Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the transmission oil. (See TRANSMISSION OIL REPLACEMENT .)
  2. Remove the cross member component.(16-inch wheel vehicles)
  3. Remove the cross member bracket.(16-inch wheel vehicles)
  4. Remove the crossbar.(16-inch wheel vehicles) (See REAR CROSSMEMBER REMOVAL/INSTALLATION .)
  5. Remove the undercover.
  6. Remove the starter. (See STARTER REMOVAL/INSTALLATION .)
  7. Remove in the order indicated in the table.

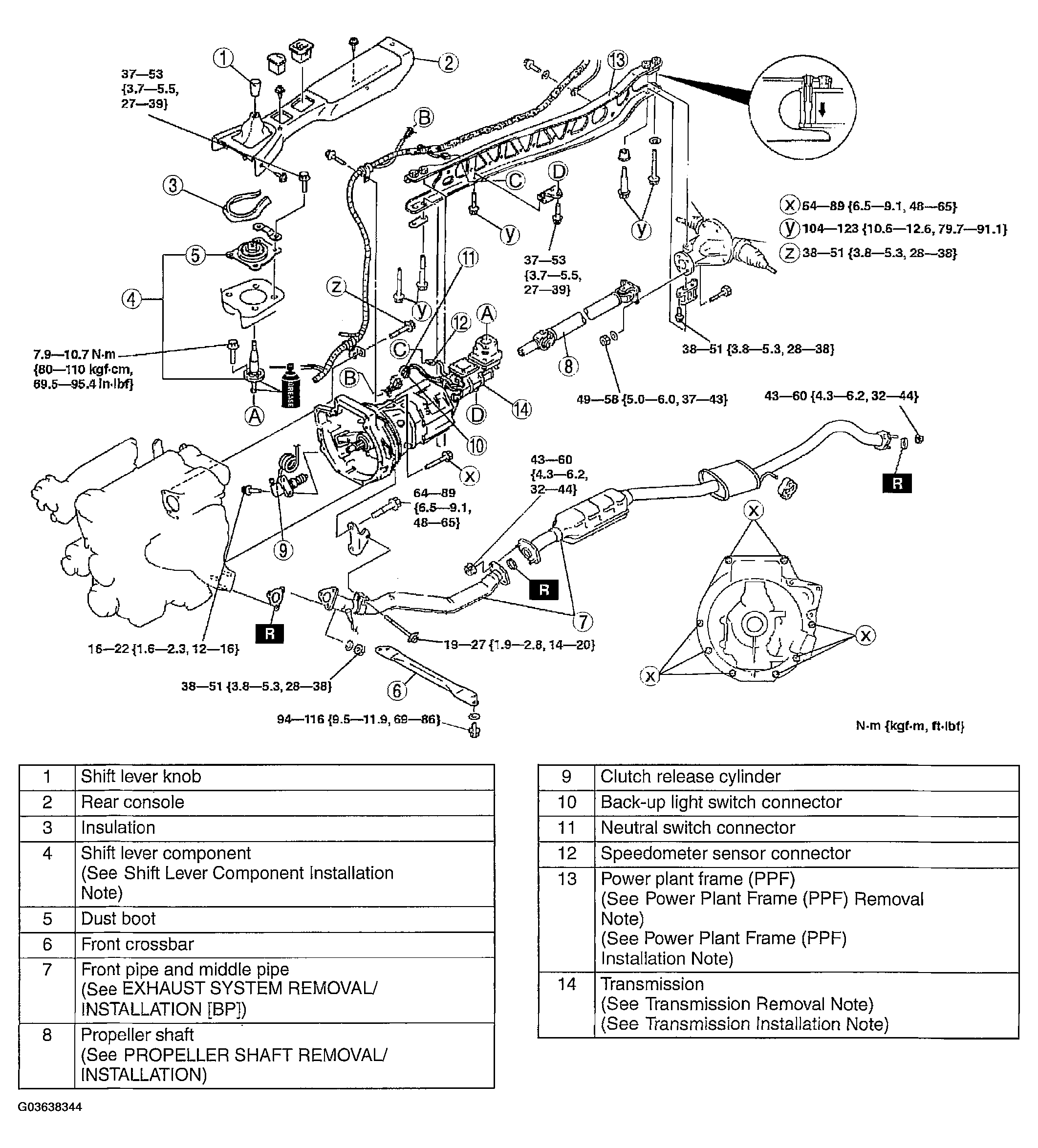

    Fig 1: Removing Manual Transmission - With Torque Specifications
    G03638344Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
  9. Add the specified amount and type of transmission oil. (See TRANSMISSION OIL REPLACEMENT .)
  10. Warm up the engine and transmission, inspect for oil leakage, and verify the transmission operation.
