Flywheel Inspection
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the contact surface for scoring, cracks, and burning.
- Remove minor scoring or burning using emery paper. Repair if scoring or burning is major. Replace if cracked.
- Inspect the ring gear teeth for wear or damage.

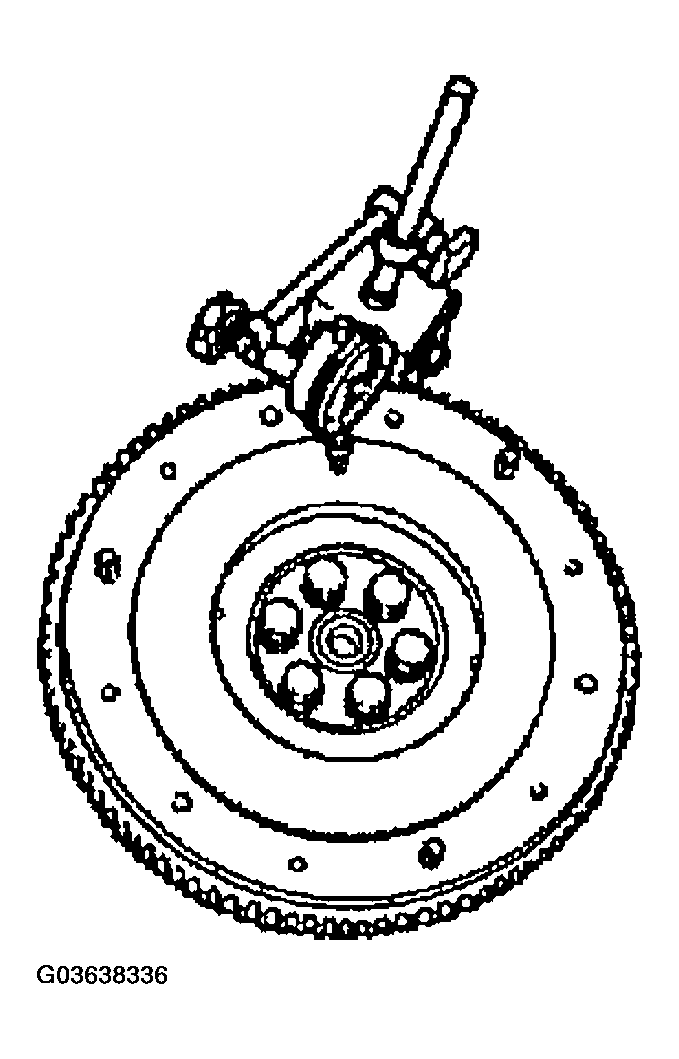

- Measure the flywheel runout using a dial indicator. Replace the flywheel if runout is excessive.
Maximum runout
- 0.2 mm {0.008 in}
