Pilot Bearing Removal Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The pilot bearing does not need to be removed unless you are replacing it.

Remove the pilot bearing using the SST.

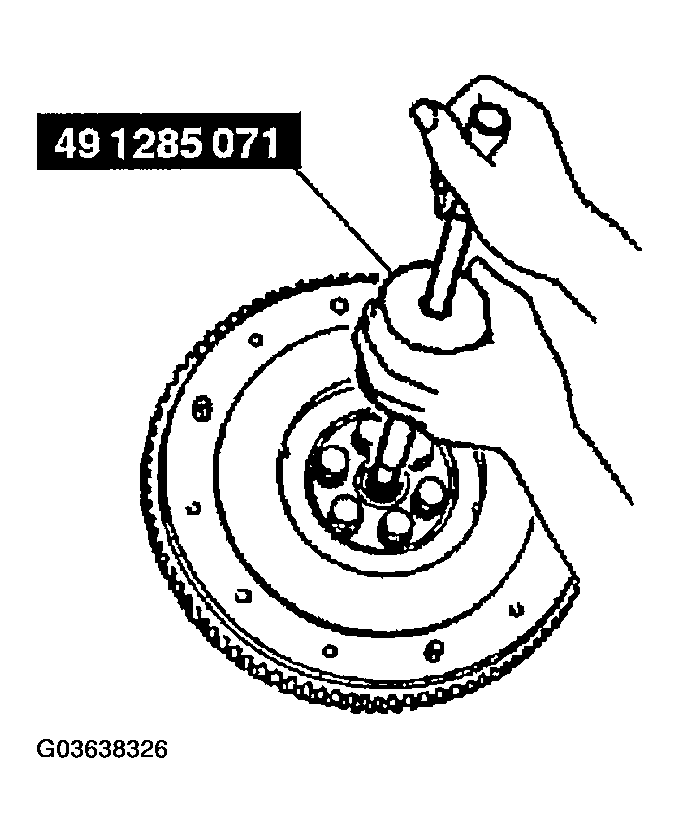

Fig 1: Removing Pilot Bearing Using SST
Courtesy of MAZDA MOTORS CORP.
