Clutch Cover, Clutch Disc Removal Note
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

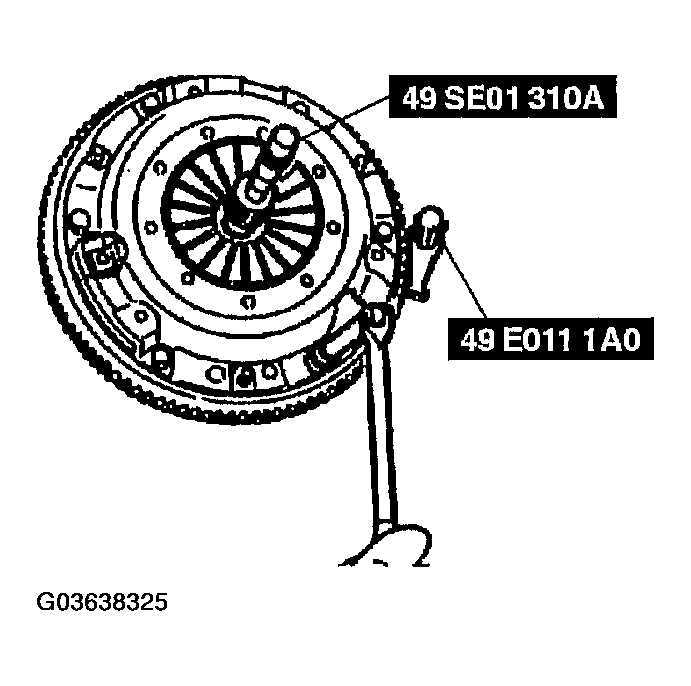

- Install the SST
(49 SE01 310A).
- Hold the flywheel using the SST
(49 E011 1A0).
- Loosen each bolt one turn at a time in a crisscross pattern until spring tension is released.
Then remove the clutch cover and disc.
Courtesy of MAZDA MOTORS CORP.
