Clutch Cover Installation Note
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

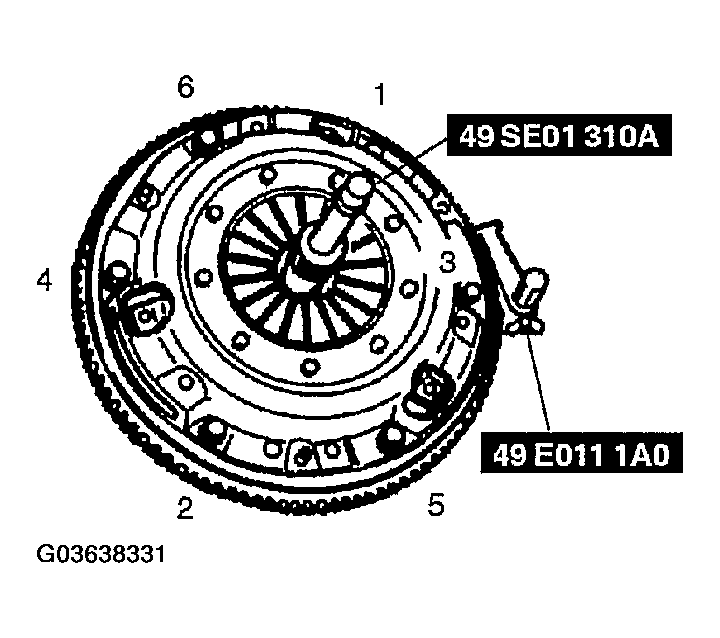

- Hold the flywheel using the SST.
- Align the dowel holes with the flywheel dowels.
- Tighten the bolts evenly and gradually in the pattern shown.
Tightening torque
- 18-26 N.m {1.8-2.7 kgf.m, 14-19 ft.lbf}
Courtesy of MAZDA MOTORS CORP.
