Clutch Release Cylinder Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Clutch fluid will damage painted surfaces.
- If clutch fluid does get on a painted surface, wipe it off immediately.

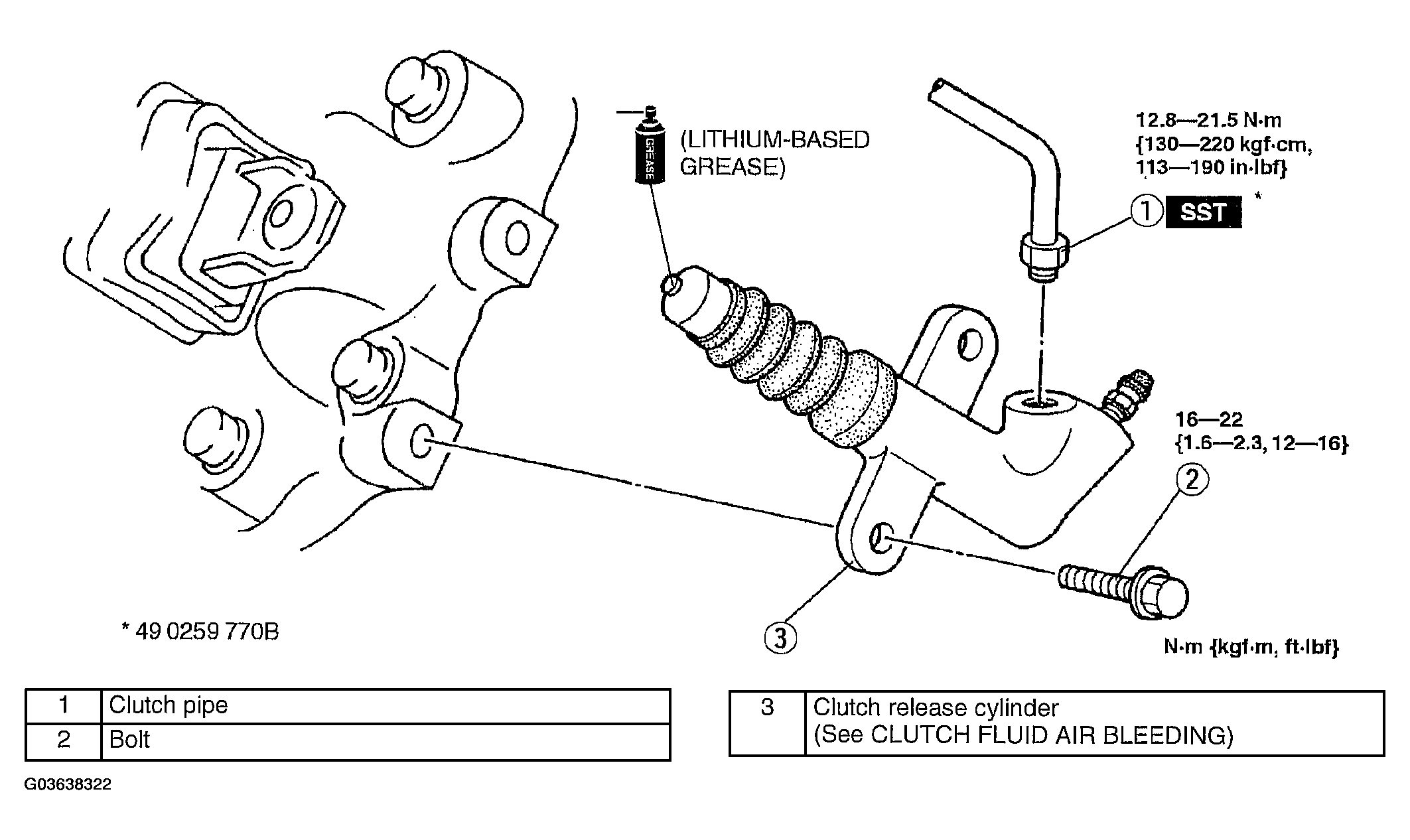

- Remove in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
