Clutch Release Cylinder Disassembly/Assembly

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.
WARNING:
- Applying compressed air to the cylinder component can make the contents suddenly pop out, possibly causing injury. Hold a rag over the cylinder opening when using compressed air.

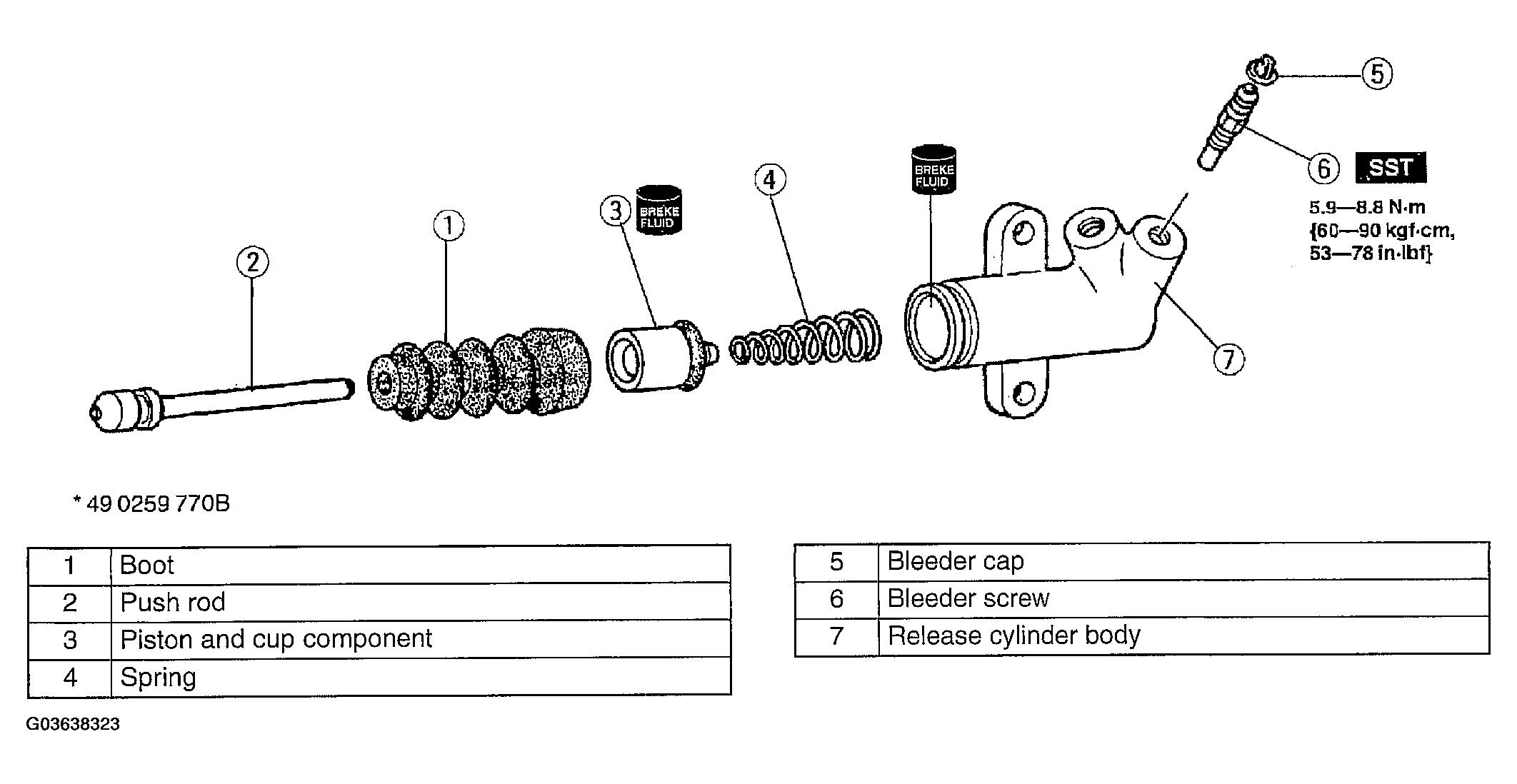

Fig 1: Disassembling Clutch Release Cylinder - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Wipe all parts, and use compressed air to clean all ports, passages, and inner parts.
Assemble in the reverse order of disassembly.
