Spring Installation Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the clutch pedal component in a vise.
  2. Install the spring onto the clutch pedal as shown in Fig 1.

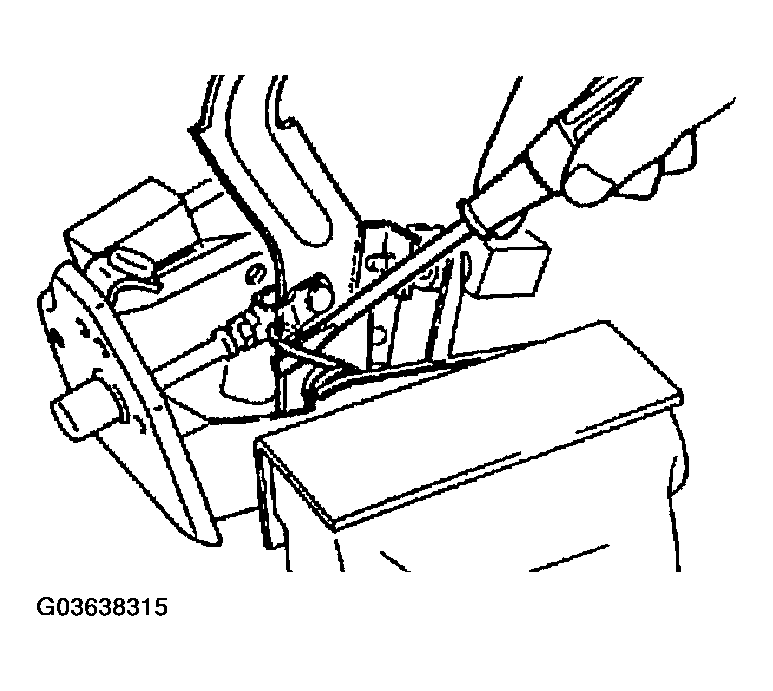

    Fig 1: Installing Spring Onto Clutch Pedal
    G03638315Courtesy of MAZDA MOTORS CORP.
  3. Adjust the clutch pedal height and free play after installation.
