Clutch Pedal Height Inspection
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

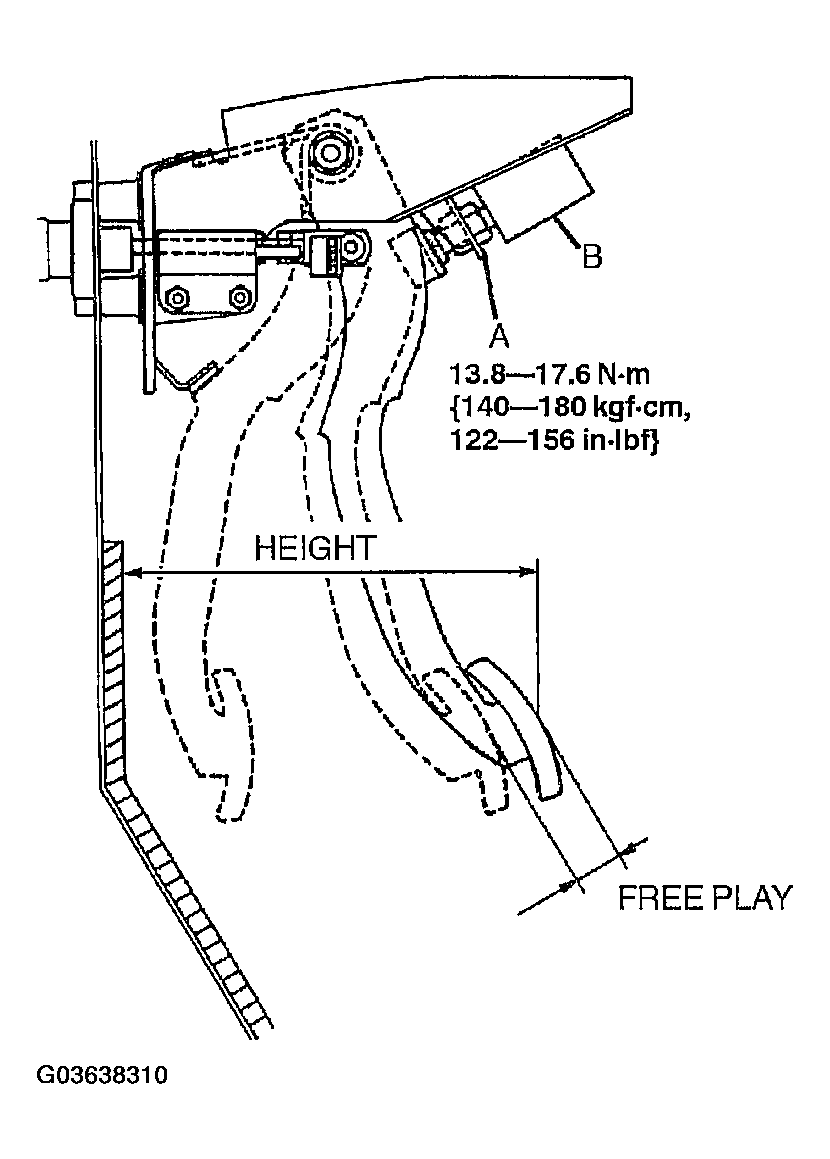

- Measure the distance from the upper surface of the pedal pad to the cabin carpet.
Pedal height
- 175-180 mm {6.89-7.08 in} (With carpet)
- Adjust the height if necessary.
Courtesy of MAZDA MOTORS CORP.
