Clutch Pedal Height Adjustment
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the clutch switch connector.

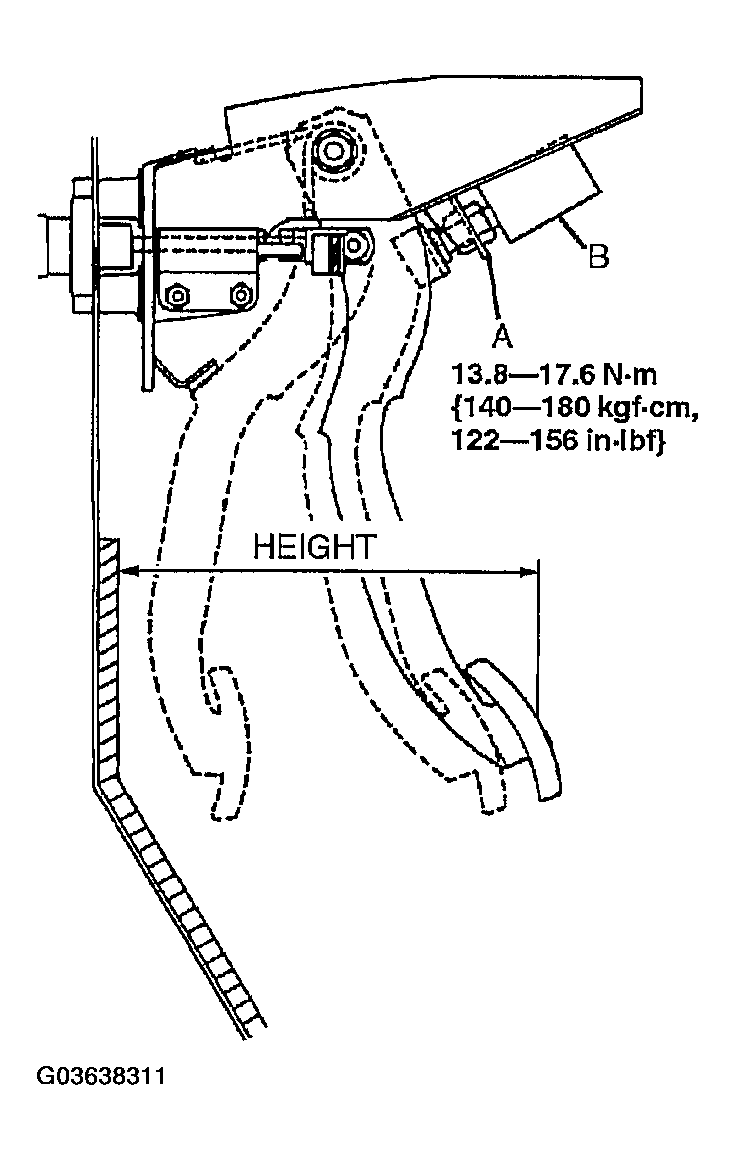

- Loosen locknut A and turn clutch switch B until the height is correct.
- Tighten locknut A.
Tightening torque
- 13.8-17.6 N.m {140-180 kgf.cm, 122-156 in.lbf}
- After adjustment, inspect the free play.
