Clutch Pedal Free Play Adjustment
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

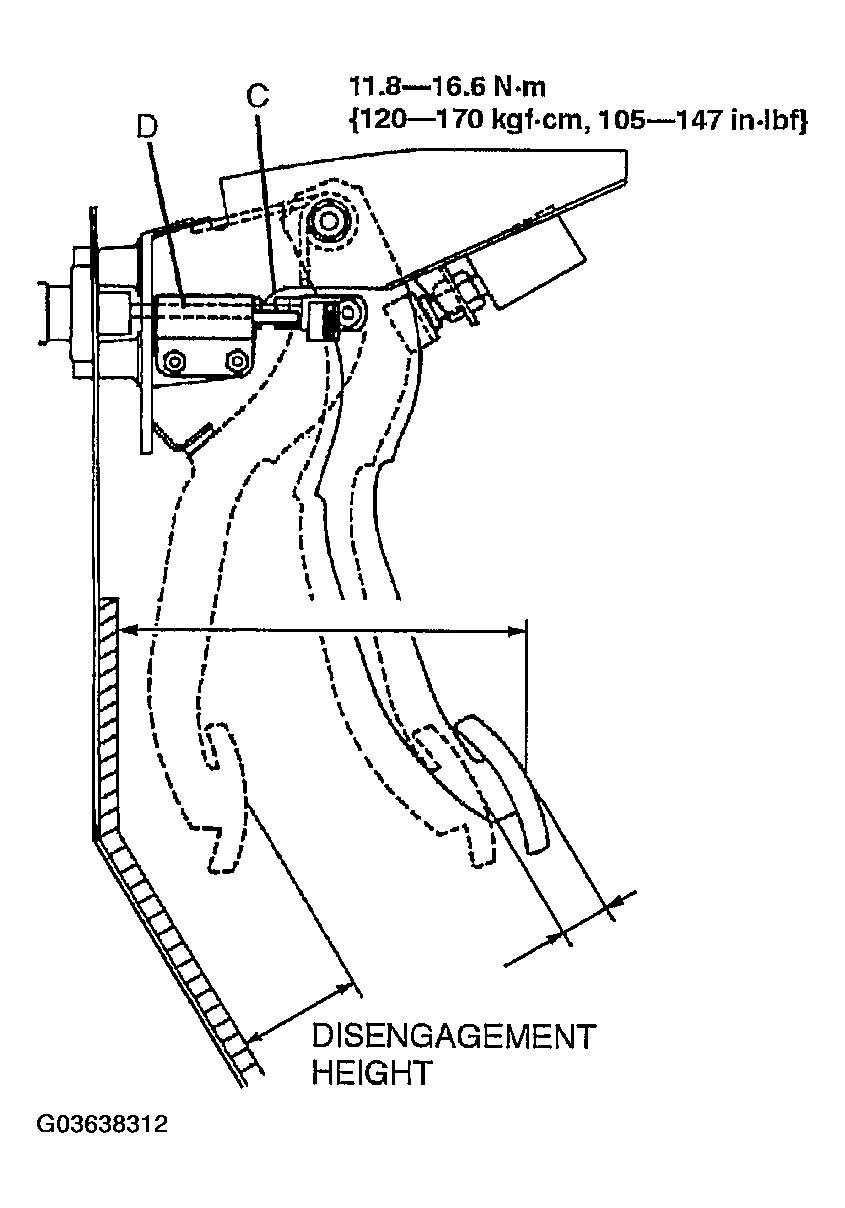

- Loosen locknut C and turn push rod D until the free play is correct.
- Verify that the disengagement height as measured from the upper surface of the pedal pad to the carpet is correct when the pedal is fully depressed.
Minimum disengagement height
- 68 mm {2.68 in} (With carpet)
- Tighten locknut C.
Tightening torque
- 11.8-16.6 N.m {120-170 kgf.cm, 105-147 in.lbf}
- After adjustment, inspect the height.
