Parking Brake Cable Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust pipe heat insulator.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.
  4. After installation:
    1. Adjust the parking brake lever stroke.
    2. Depress the brake pedal a few times.
    3. Verify that the rear brakes do not drag while the wheels are rotated by hand.

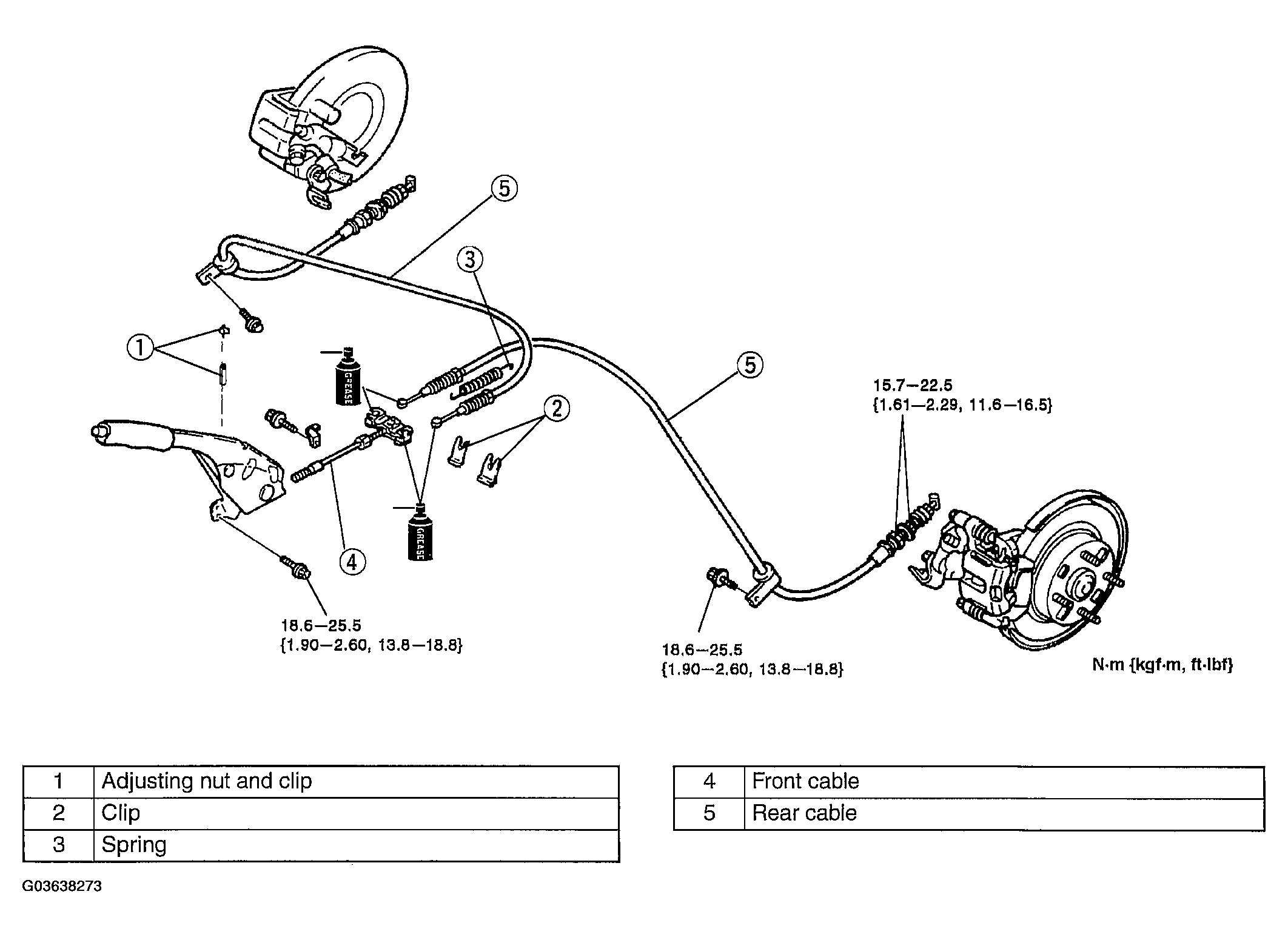

    Fig 1: Exploded View Of Parking Brake Cable & Torque Specifications
    G03638273Courtesy of MAZDA MOTORS CORP.
