Propeller Shaft Removal Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Before removing the propeller shaft, mark the flanges for correct installation.

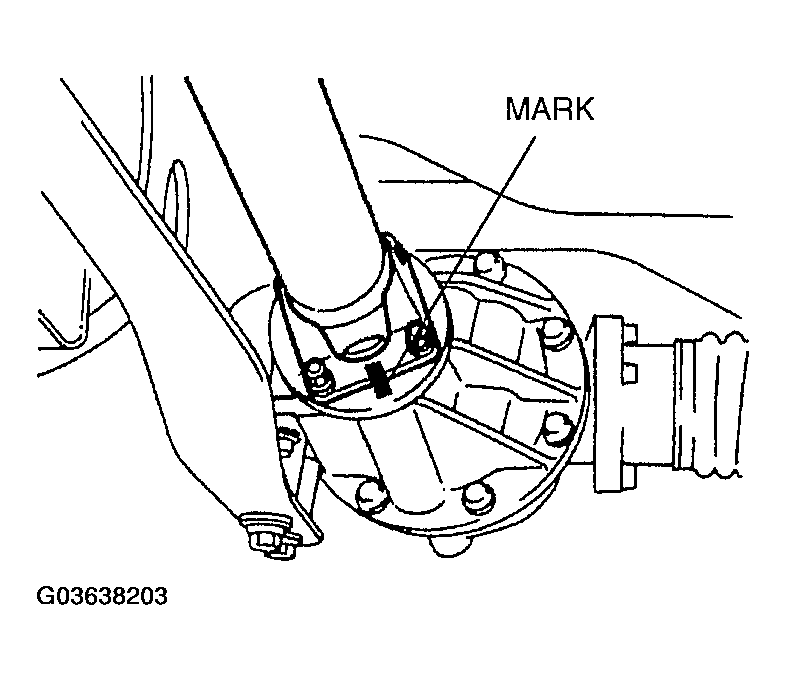

Fig 1: Identifying Mark On Flanges
Courtesy of MAZDA MOTORS CORP.
Remove the propeller shaft from the extension housing, and immediately install the SST to prevent oil leakage.

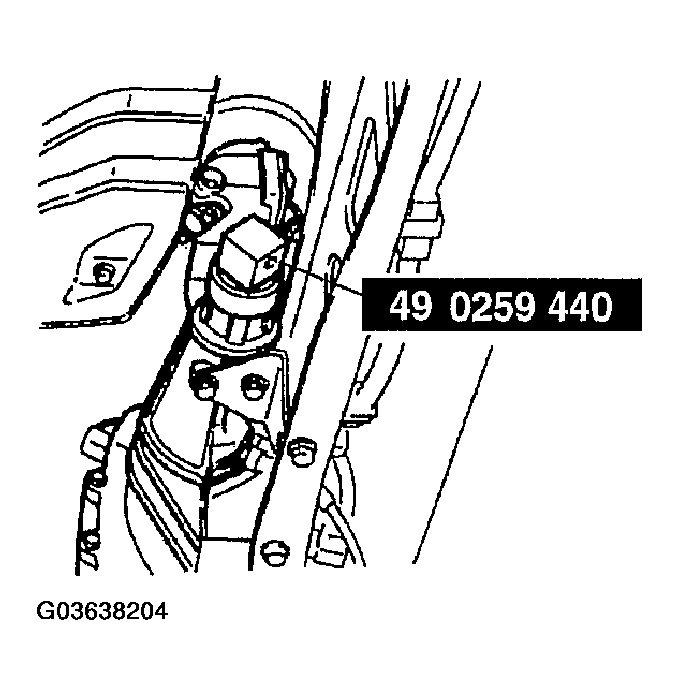

Fig 2: Installing SST
Courtesy of MAZDA MOTORS CORP.
