Drive Shaft Disassembly/Assembly (BP): Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

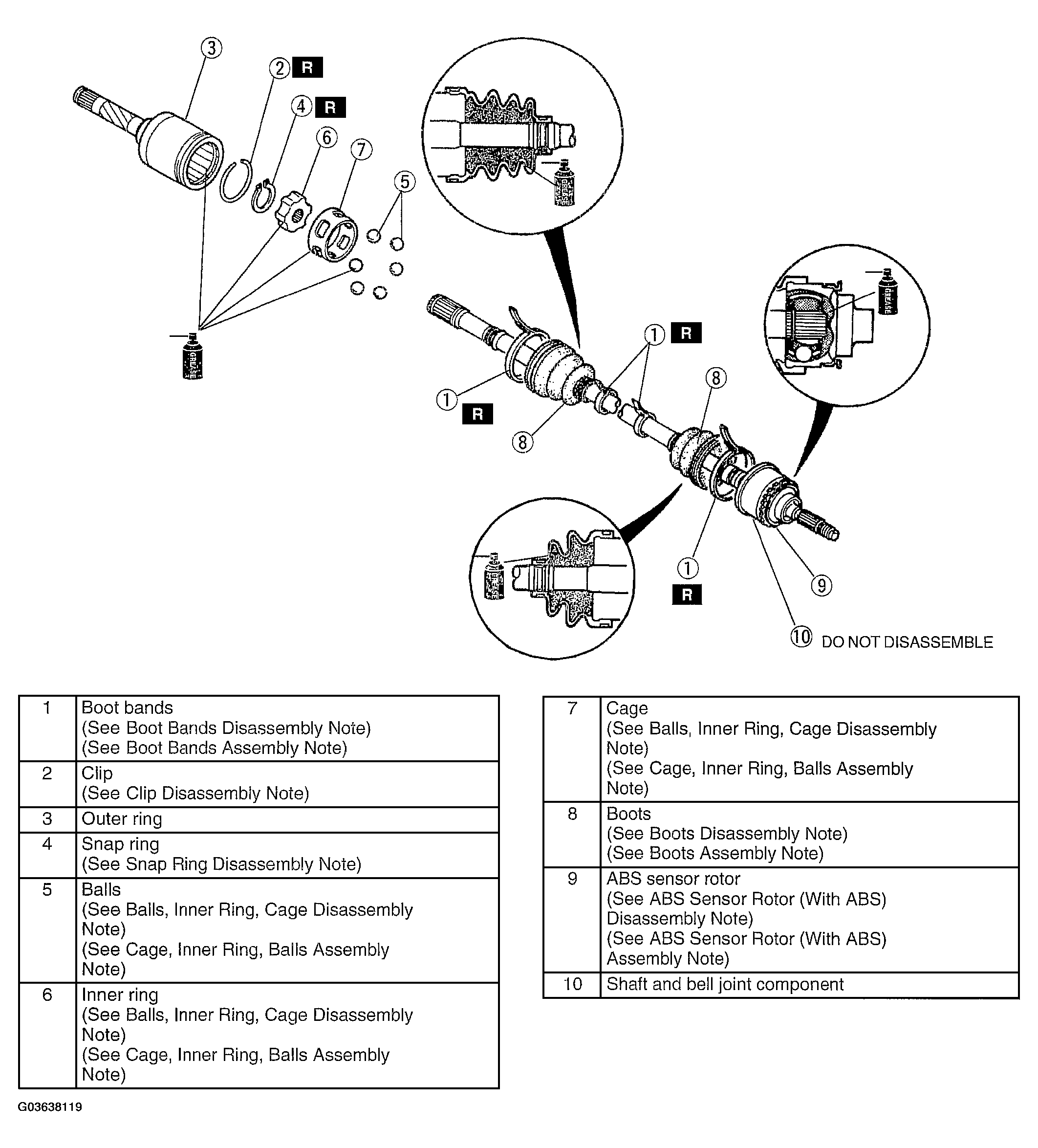

    Fig 1: Disassembled View Of Drive Shaft
    G03638119Courtesy of MAZDA MOTORS CORP.
