Clip Disassembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark the drive shaft and outer ring.
  2. Remove the clip.

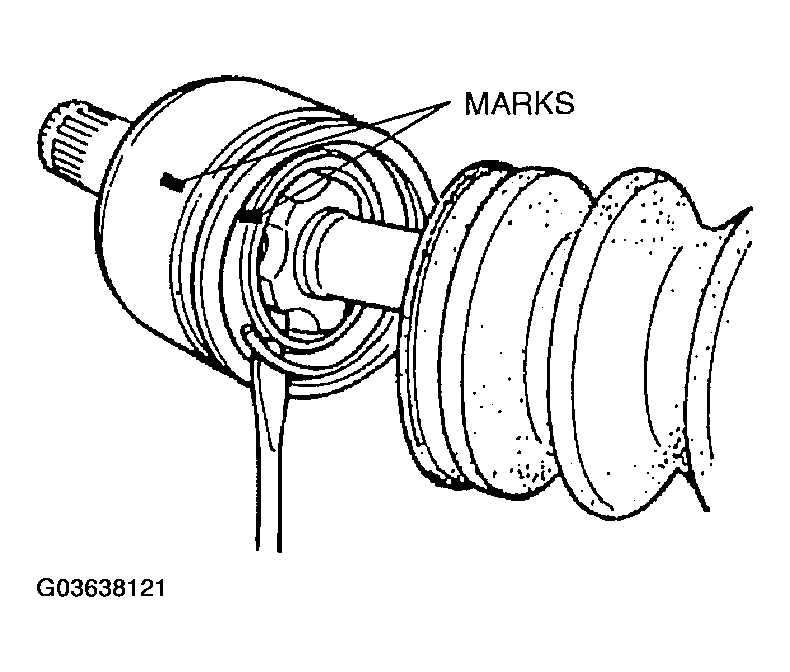

    Fig 1: Removing Clip
    G03638121Courtesy of MAZDA MOTORS CORP.
