Boot Band (Differential Side) Assembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using pliers, pull the boot band around the boot slot in opposite direction of drive shaft forward rotation direction and tighten.

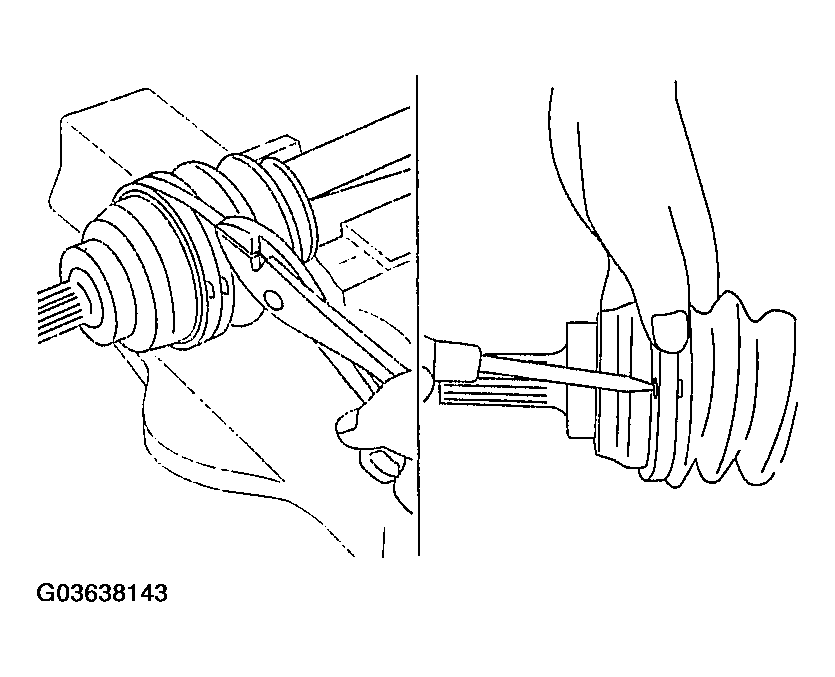

    2. Fig 1: Pulling Boot Band Around Boot Slot In Opposite Direction Of Drive Shaft Forward Rotation Direction And Tighten
    G03638143Courtesy of MAZDA MOTORS CORP.
  2. Insert the end of the boot band between the boot band clip and fold back the clip tabs using a flathead screwdriver to secure the boot band.
  3. Verify that the boot band is installed to the boot slot securely.
