ABS Sensor Rotor Assembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set a new ABS sensor rotor on the drive shaft and press it on using the SSTs  .

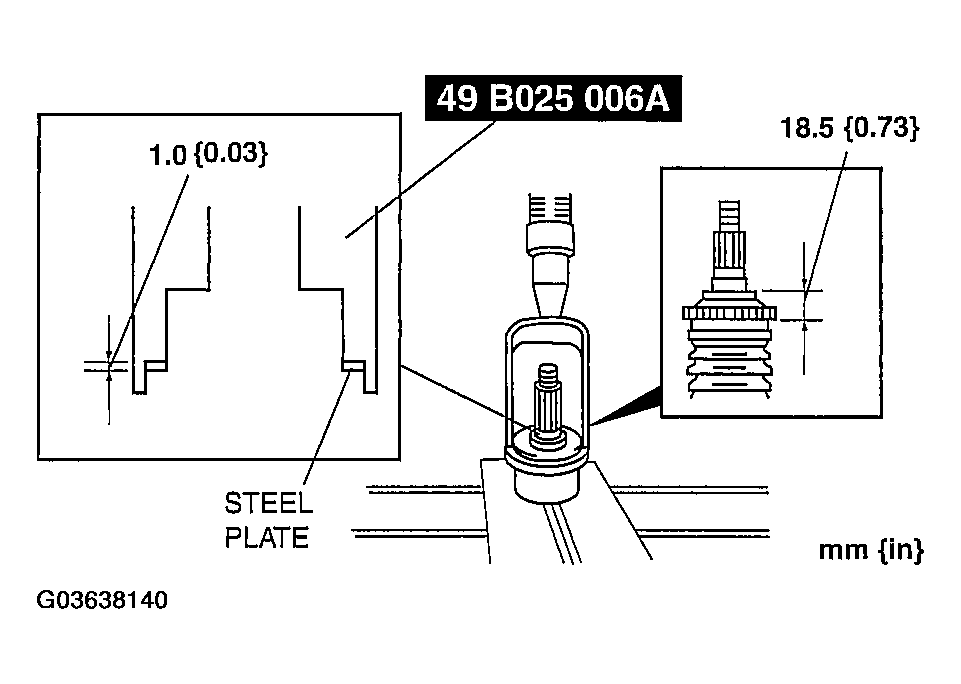

    Fig 1: Installing New ABS Sensor Rotor On Drive Shaft
    G03638140Courtesy of MAZDA MOTORS CORP.
