Lower Arm Bushing (Front and Rear) Removal Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the lower arm bushing out using the SSTs  and a socket as shown.

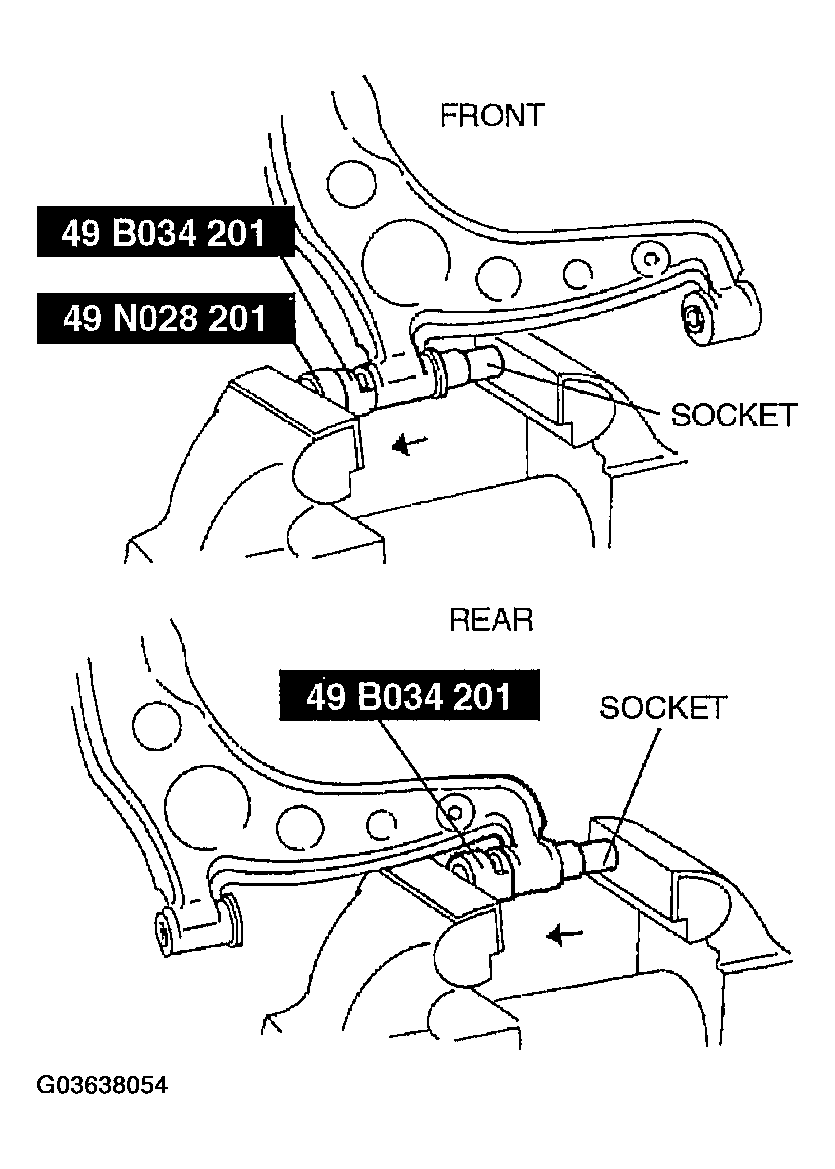

    Fig 1: Pressing Lower Arm Bushing Out Using SSTS And A Socket
    G03638054Courtesy of MAZDA MOTORS CORP.
