Lower Arm Bushing (Front and Rear) Installation Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Apply soapy water to the lower arm bushing.
Press the bushing in using the SST and a socket in the direction of the arrow.

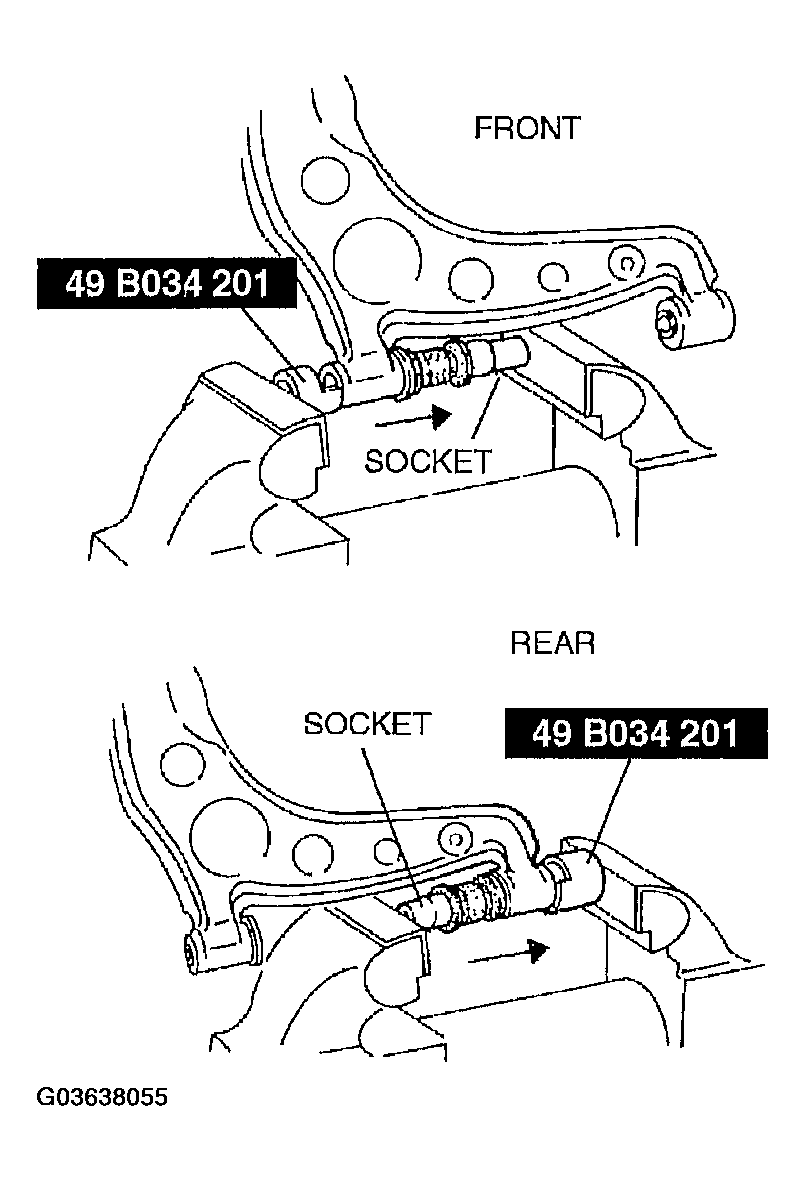

Fig 1: Installing Lower Arm Bushing
Courtesy of MAZDA MOTORS CORP.
