Evaporative Emission (EVAP) System Leak Detection Pump Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Raise the rear of the vehicle and support it with safety stands.
Remove in the order indicated in the table.

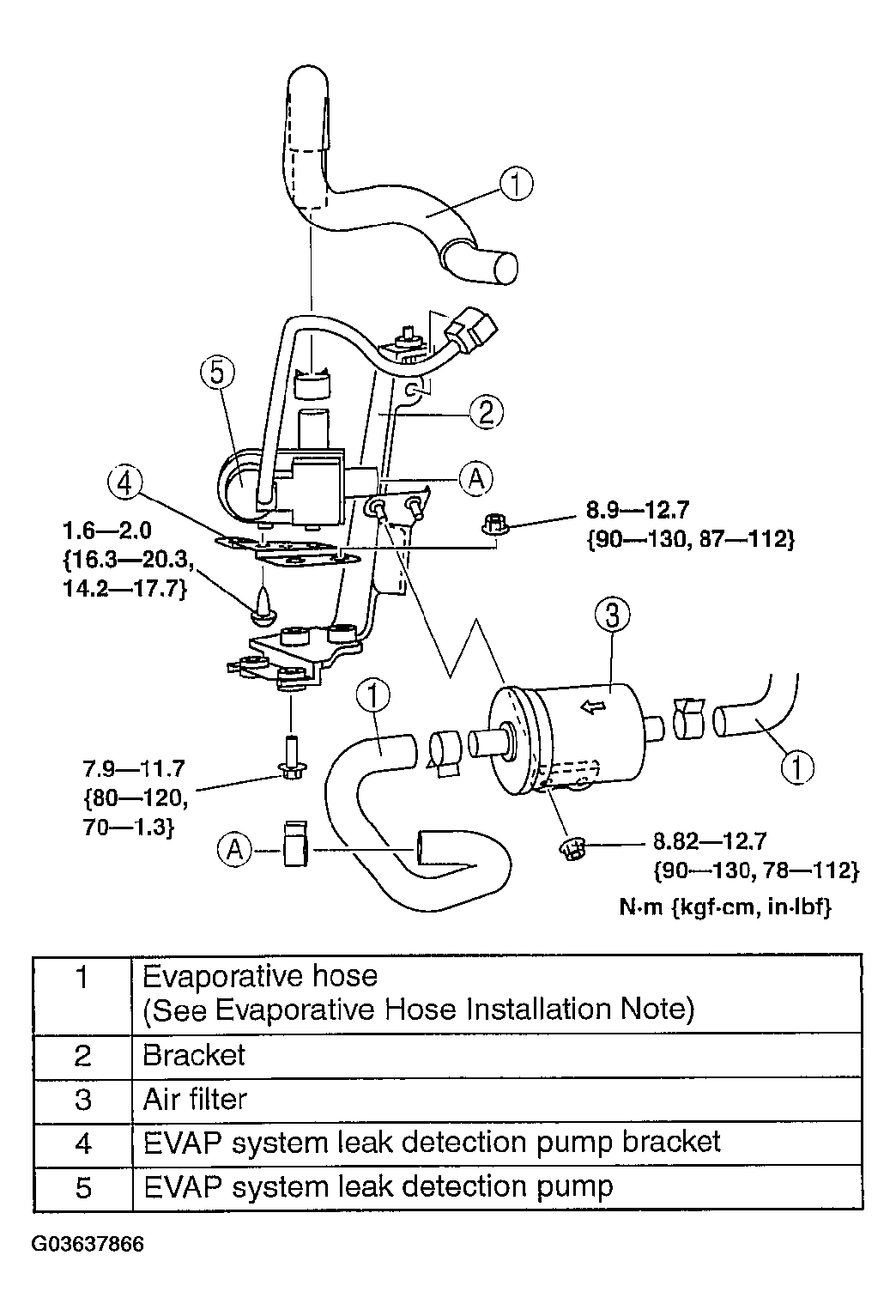

Fig 1: Exploded View Of Evaporative Emission (EVAP) System Leak Detection Pump & Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
