Resistance Inspection
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Perform the following test only when directed.
- Disconnect the negative battery cable.

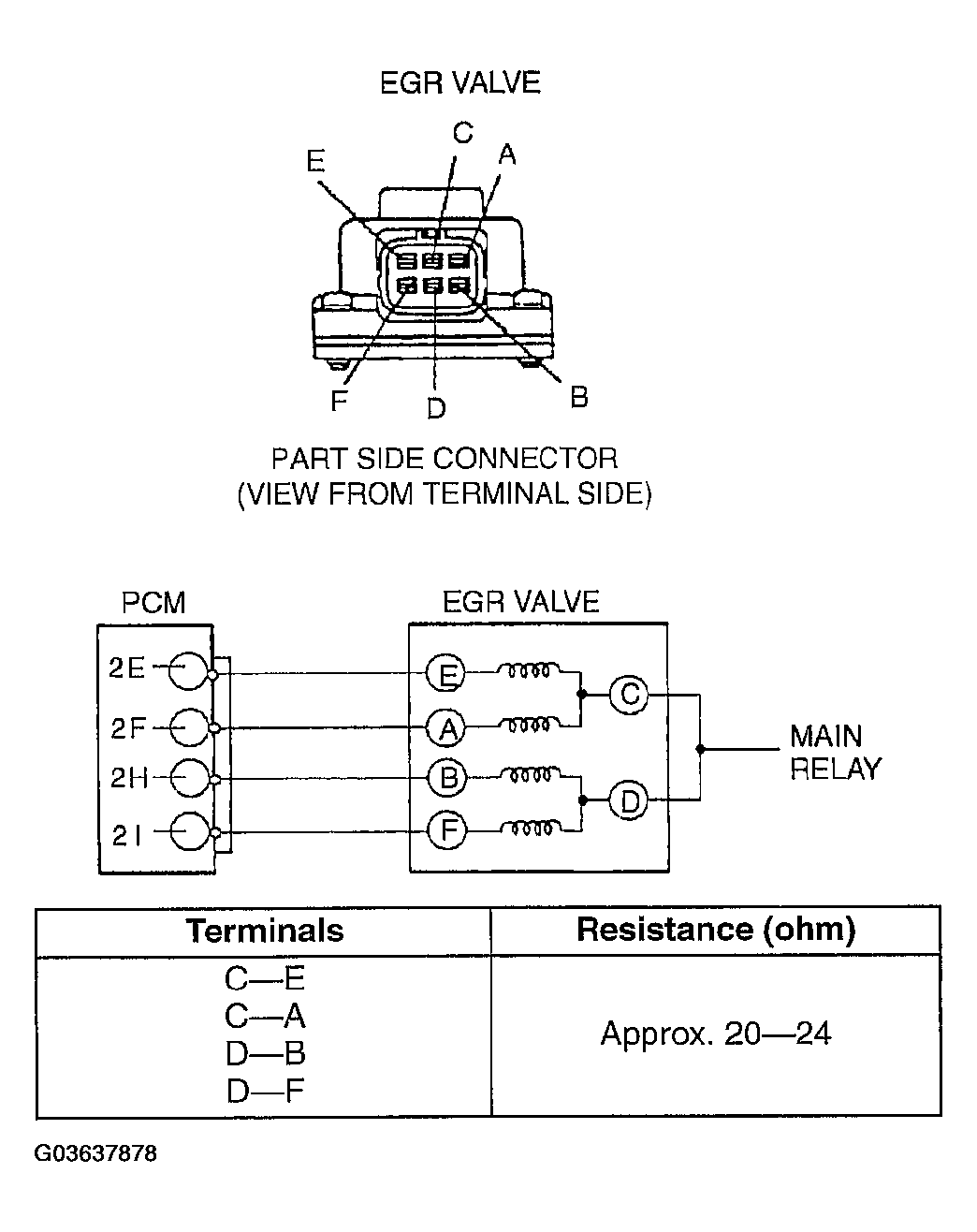

- Inspect resistance of the EGR valve coils.
- If as specified, inspect the vacuum hoses for improper routing, kinks or leakage, and carry out "Circuit Open/Short Inspection".
- If not as specified, replace the EGR valve.
- Remove the EGR valve, and inspect for any damage or clogging. If not as specified, replace the EGR valve.
- Connect the negative battery cable.
