Drive Cycle-Mode 2

WARNING: This page is about a different car, the 1997 Mazda Millenia. However, it is still accessible from the selected car via links, so may be relevant.

Start engine and warm to normal operating temperature. Ensure all electrical and A/C loads are off. Drive vehicle at specified speed for one minute. See Fig 1 .

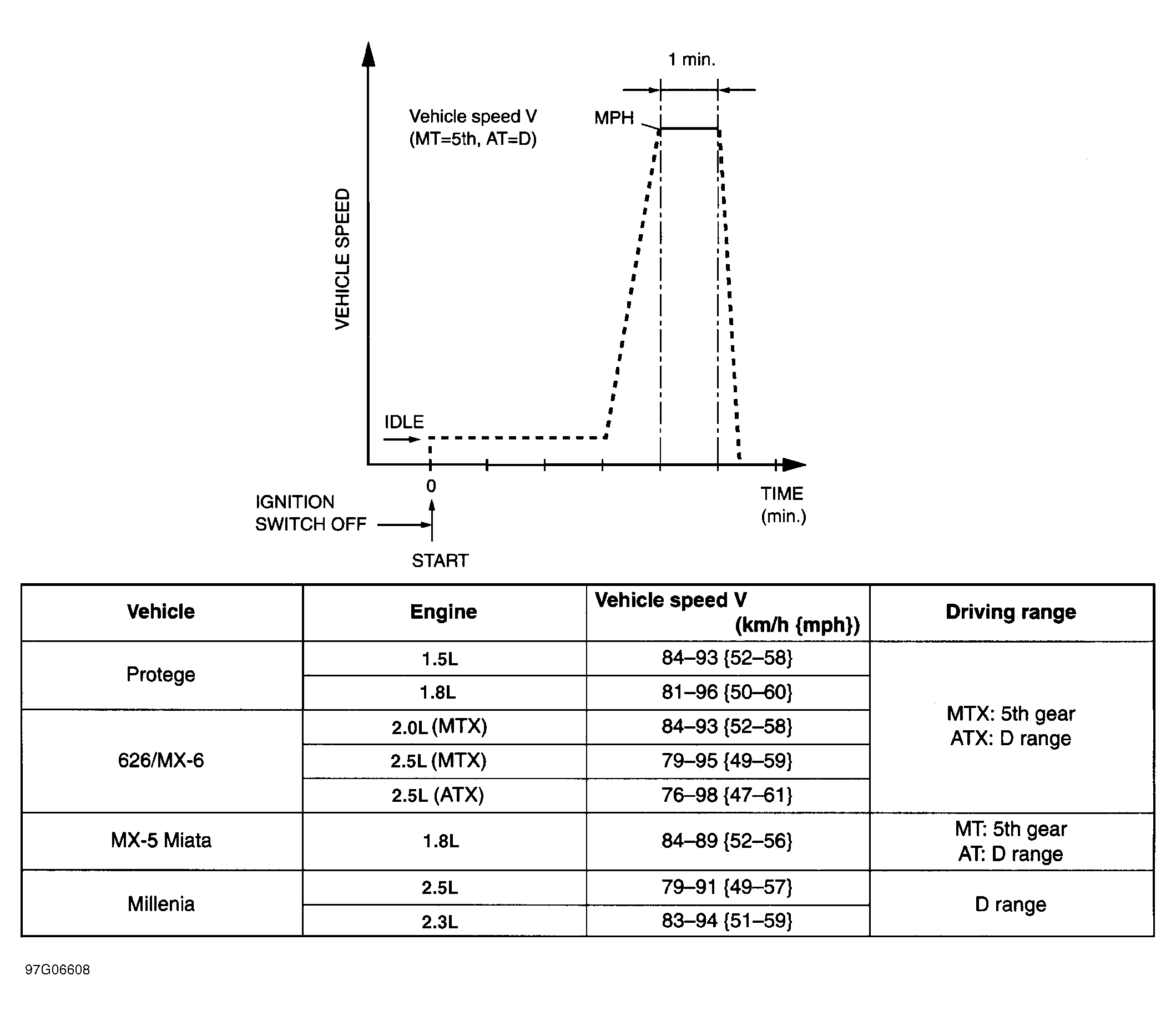

Fig 1: Drive Cycle-Mode 2 Vehicle Speed Table

Courtesy of MAZDA MOTORS CORP.
