Pulsation Damper No.1 Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION (+)
Disconnect the negative battery cable.
Remove in the order indicated in the table.

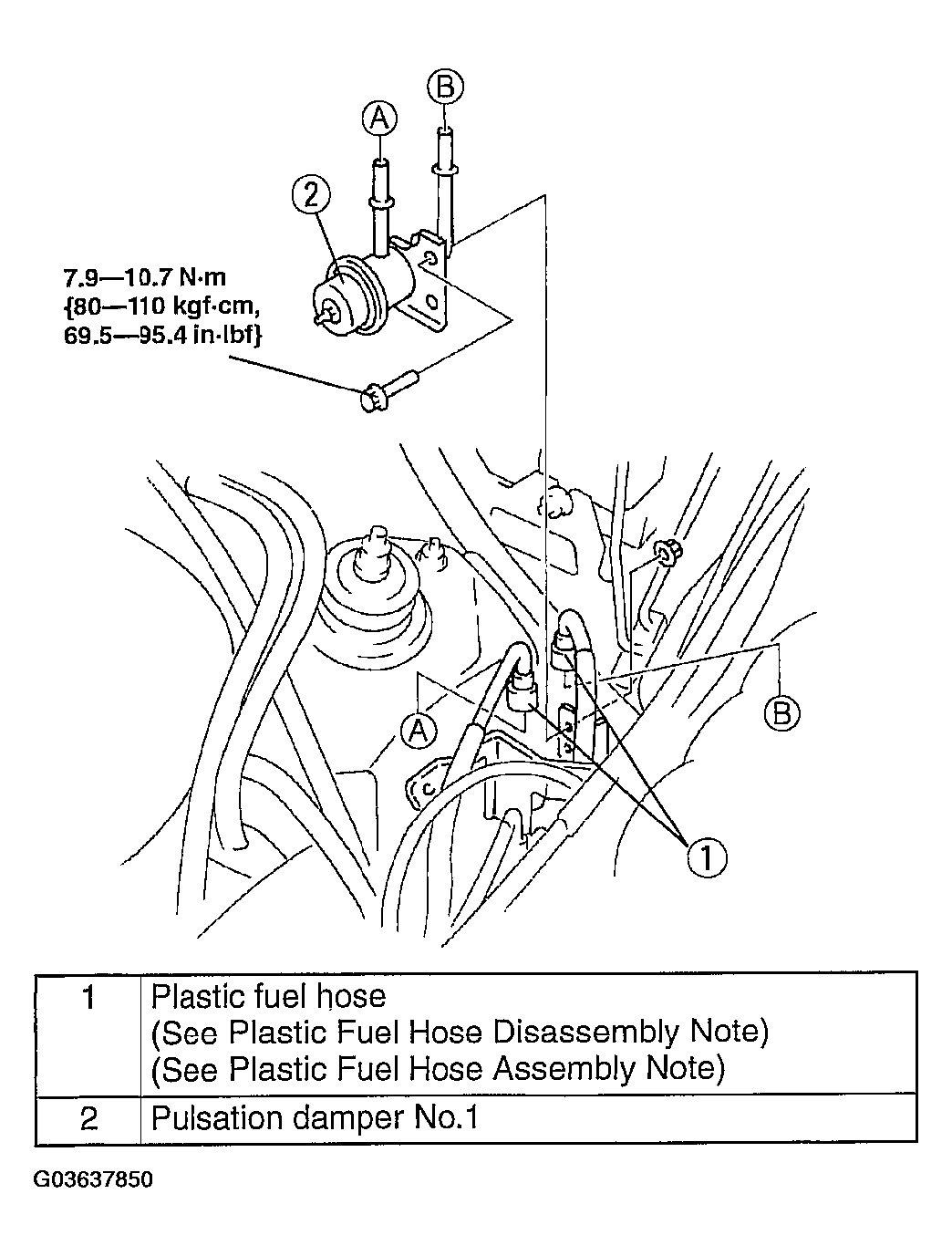

Fig 1: Removing Pulsation Damper (BP, BP With TC) & Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION (+)
